B82725A2103N001 - TDK

Description: Epcos 1800 μH ±30% Ferrite Current Compensated Choke, 10A Idc, 14mΩ Rdc B82721A

Download B82725A2103N001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82725A2103N001 - TDK - PCB symbol
click to zoom
PCB Footprints

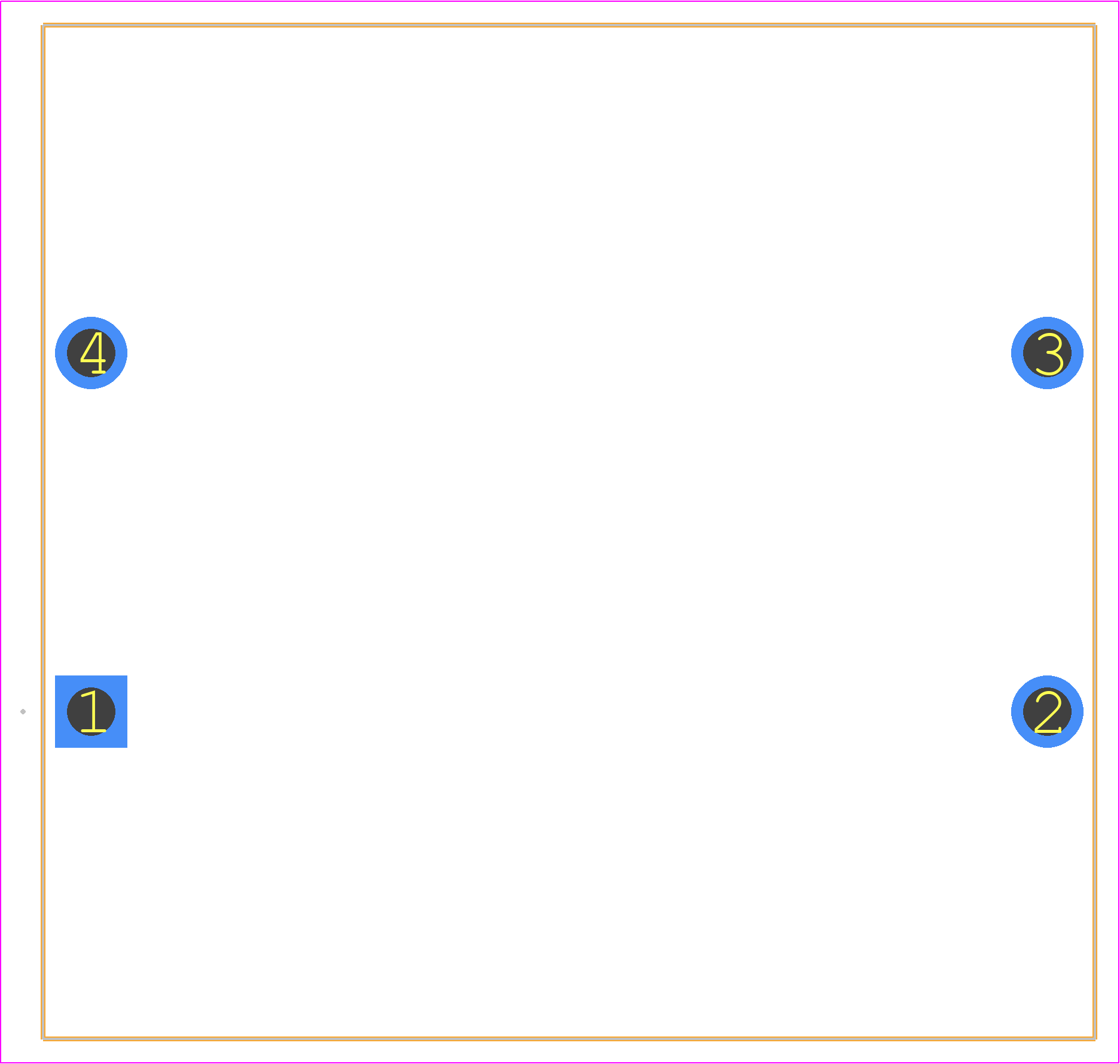

B82725A2103N001 - TDK PCB footprint - Other - Other - B82725A
click to zoom
3D Models
B82725A2103N001 - TDK - 3D model - Other - B82725A
click to zoom

B82725A2103N001 Details

  • Manufacturer Part Number:

    B82725A2103N001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    India, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.014 Ω

  • Inductance-Nom (L):

    1800 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Length:

    4 mm

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    25 mm

  • Package Length:

    44 mm

  • Package Style:

    Radial

  • Package Width:

    42.4 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    10 A

  • Reference Standard:

    EN; IEC; UL; VDE

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Special Feature:

    INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Placement:

    DUAL IN-LINE

  • Terminal Shape:

    FLAT

  • Test Frequency:

    0.01 MHz

  • Tolerance:

    30%

B82725A2103N001 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the B82725A2103N001 can be found in the TDK Corporation's application note or footprint library. It is essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and electrical issues.
  • The B82725A2103N001 has a rated operating temperature range of -40°C to +125°C. While it can tolerate high temperatures, it's essential to consider the derating curves and temperature coefficients to ensure the inductor's performance and reliability in extreme temperature conditions.
  • The B82725A2103N001 has a magnetic shield to reduce electromagnetic interference (EMI). To ensure effective shielding, it's crucial to follow proper PCB layout and design guidelines, such as keeping the inductor away from other components and using a solid ground plane.
  • The self-resonant frequency of the B82725A2103N001 is not explicitly stated in the datasheet. However, it can be estimated using the inductor's inductance and capacitance values. Alternatively, you can contact TDK Corporation's technical support for more information.
  • The B82725A2103N001 has a rated current of 2.1 A. While it can handle high currents, it's essential to consider the inductor's temperature rise, power loss, and saturation characteristics to ensure reliable operation in high-current applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B82725A2103N001 Overview

Use the download button to access the B82725A2103N001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8272, or try a keyword search, such as Fixed Inductors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
