B82725J2602N020 Frequently Asked Questions (FAQs)

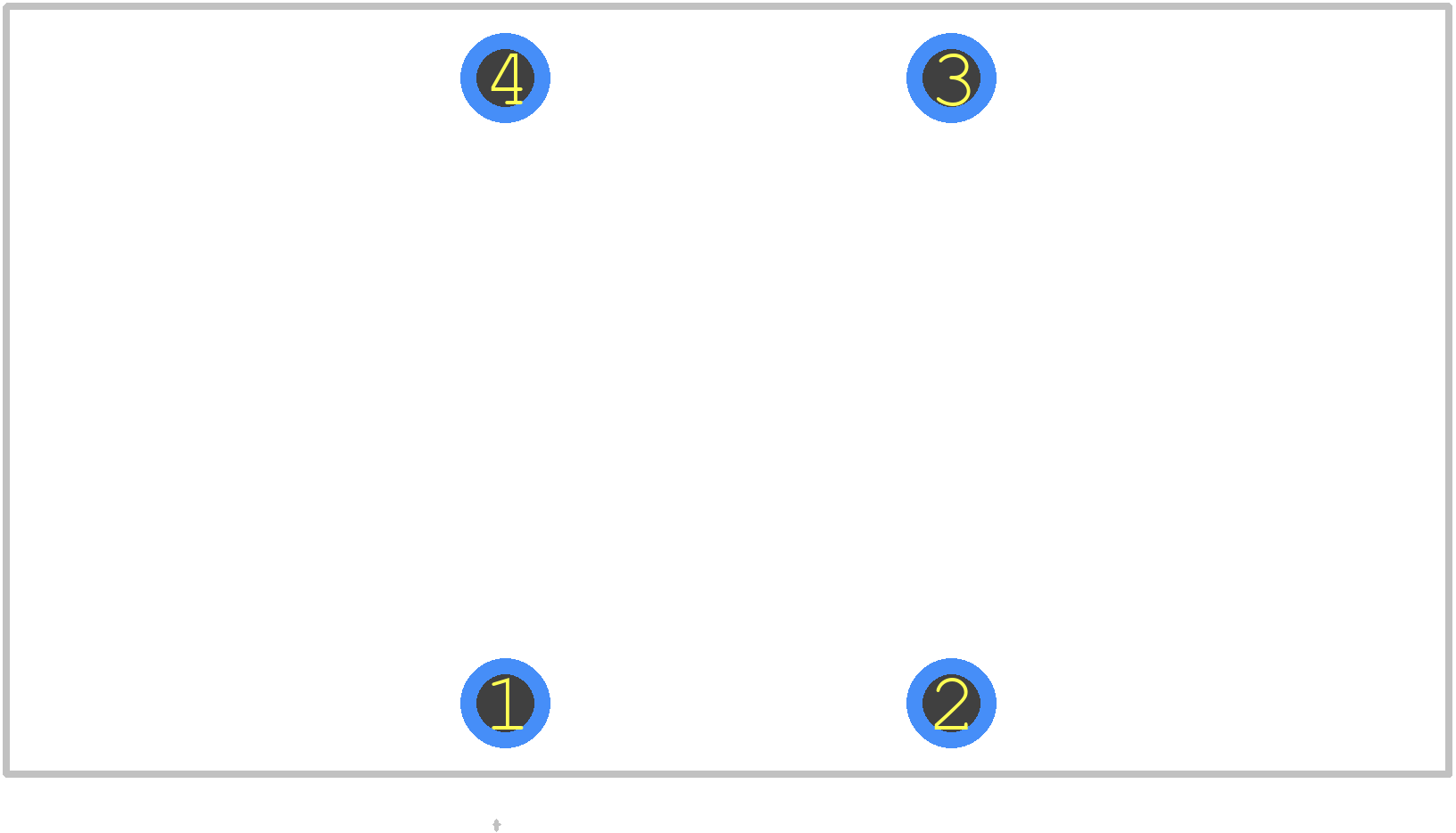

• What is the recommended land pattern for this inductor?
  The recommended land pattern for the B82725J2602N020 can be found in the TDK Corporation's application note or footprint library. It typically includes a rectangular pad with a size of around 2.5mm x 1.5mm, with a 0.5mm hole in the center for the inductor's terminal.
• How do I handle the inductor's thermal derating?
  The thermal derating of the B82725J2602N020 inductor is typically handled by reducing the maximum current rating as the operating temperature increases. TDK Corporation provides a thermal derating curve in the datasheet, which shows the maximum current rating at different temperatures. Engineers should ensure that their design stays within the recommended current rating at the expected operating temperature.
• What is the inductor's self-resonant frequency?
  The self-resonant frequency of the B82725J2602N020 inductor is not explicitly stated in the datasheet. However, it can be estimated using the inductor's inductance value and the parasitic capacitance. Typically, the self-resonant frequency of this inductor is in the range of 100-200 MHz. Engineers should ensure that their design does not operate near this frequency to avoid unwanted resonances.
• Can I use this inductor in a high-vibration environment?
  The B82725J2602N020 inductor is designed to withstand moderate vibrations, but its performance may degrade in high-vibration environments. Engineers should consult TDK Corporation's reliability data and perform additional testing to ensure the inductor's reliability in their specific application.
• How do I solder this inductor?
  The B82725J2602N020 inductor has a tin-silver-copper alloy termination, which can be soldered using a standard reflow soldering process. Engineers should follow the recommended soldering profile and ensure that the inductor is properly aligned and secured during the soldering process.
