The recommended land pattern for the B82726S2163N002 can be found in the TDK Corporation's application note or footprint library. It typically includes a rectangular pad with a size of around 3.5mm x 2.5mm, with a 1.5mm x 1.5mm thermal pad in the center.
The B82726S2163N002 has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal relief, such as a thermal pad or via, to dissipate heat. Additionally, consider the PCB's thermal conductivity, component placement, and airflow when designing the layout.
The self-resonant frequency (SRF) of the B82726S2163N002 is not explicitly stated in the datasheet. However, based on the inductor's construction and materials, the SRF is typically in the range of 100-200 MHz. It's essential to consider the SRF when designing the circuit to avoid unwanted resonances.
The B82726S2163N002 is a surface-mount device (SMD) and, as such, it may be susceptible to vibration-induced failures. TDK Corporation recommends following the recommended mounting and soldering procedures to ensure reliable operation in high-vibration environments. Additionally, consider using a vibration-resistant coating or potting compound to further enhance reliability.
The saturation current of the B82726S2163N002 is not explicitly stated in the datasheet. However, it can be estimated by using the inductor's DC resistance, core material, and geometry. A general rule of thumb is to assume the saturation current is around 1.5-2 times the rated current. For more accurate calculations, consult TDK Corporation's application notes or contact their technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B82726S2163N002 Overview

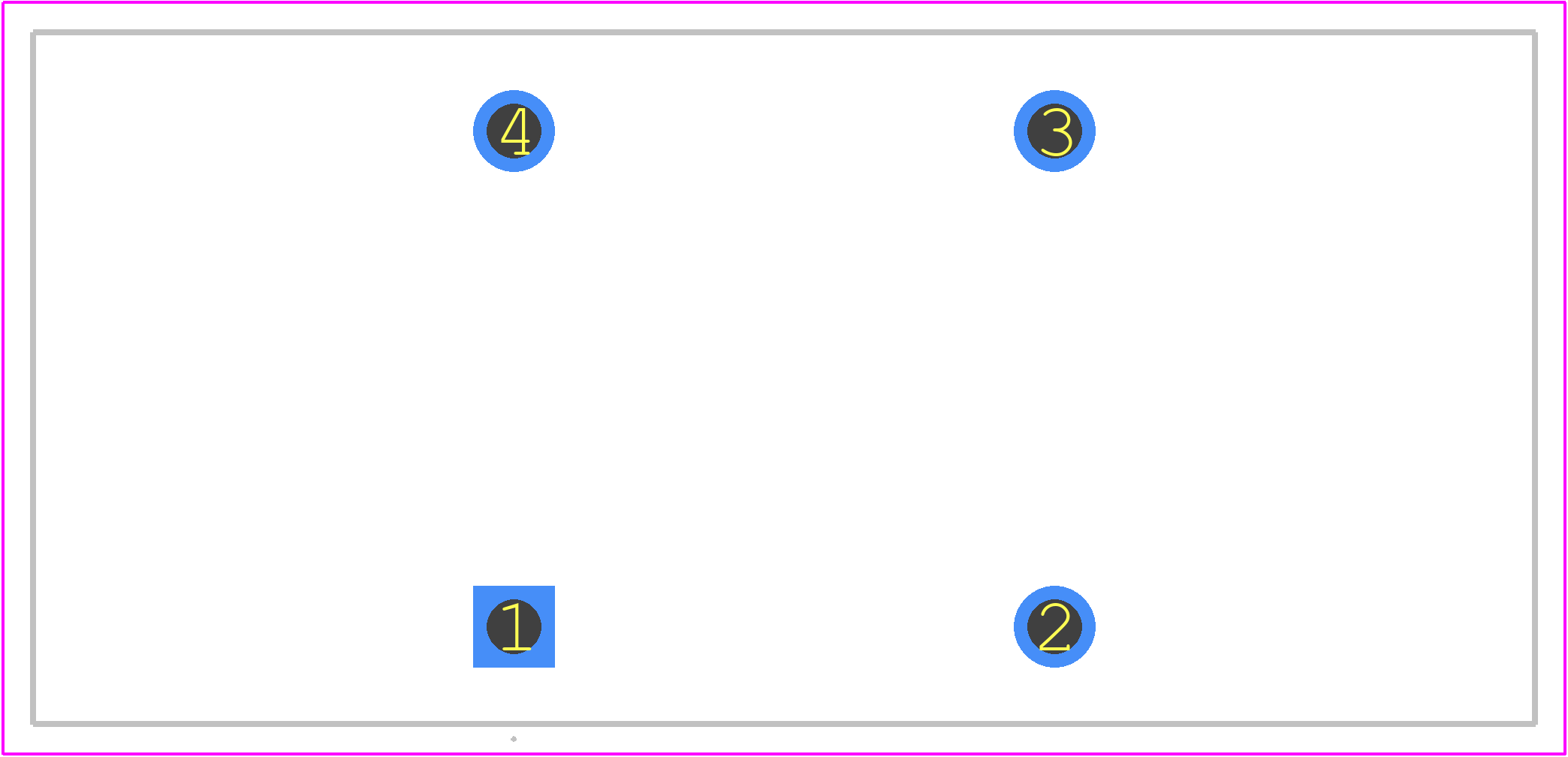

Use the download button to access the B82726S2163N002 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8272,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
