The recommended land pattern for the B82726S2203A020 can be found in the TDK Corporation's application note or footprint library. It typically includes a rectangular pad with a size of around 3.5mm x 2.5mm, with a 1.5mm x 1.5mm thermal pad in the center.
The B82726S2203A020 has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal relief, such as a thermal pad or via, to dissipate heat. Additionally, consider the PCB's thermal conductivity, component placement, and airflow when designing the layout.
The self-resonant frequency (SRF) of the B82726S2203A020 is not explicitly stated in the datasheet. However, based on similar inductors from TDK Corporation, the SRF is typically in the range of 100-200 MHz. It's essential to consider the SRF when designing high-frequency circuits to avoid unwanted resonances.
The B82726S2203A020 is a surface-mount device (SMD) and, as such, it may be susceptible to vibration-induced failures. TDK Corporation recommends following the recommended mounting and soldering procedures to ensure reliable operation in high-vibration environments. Additionally, consider using vibration-resistant components or potting the device for added reliability.
The B82726S2203A020 has a moisture sensitivity level (MSL) of 1, according to the JEDEC standard J-STD-020. This means that the device can withstand a maximum of 30 days in a humidity-controlled environment before being soldered onto a PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B82726S2203A020 Overview

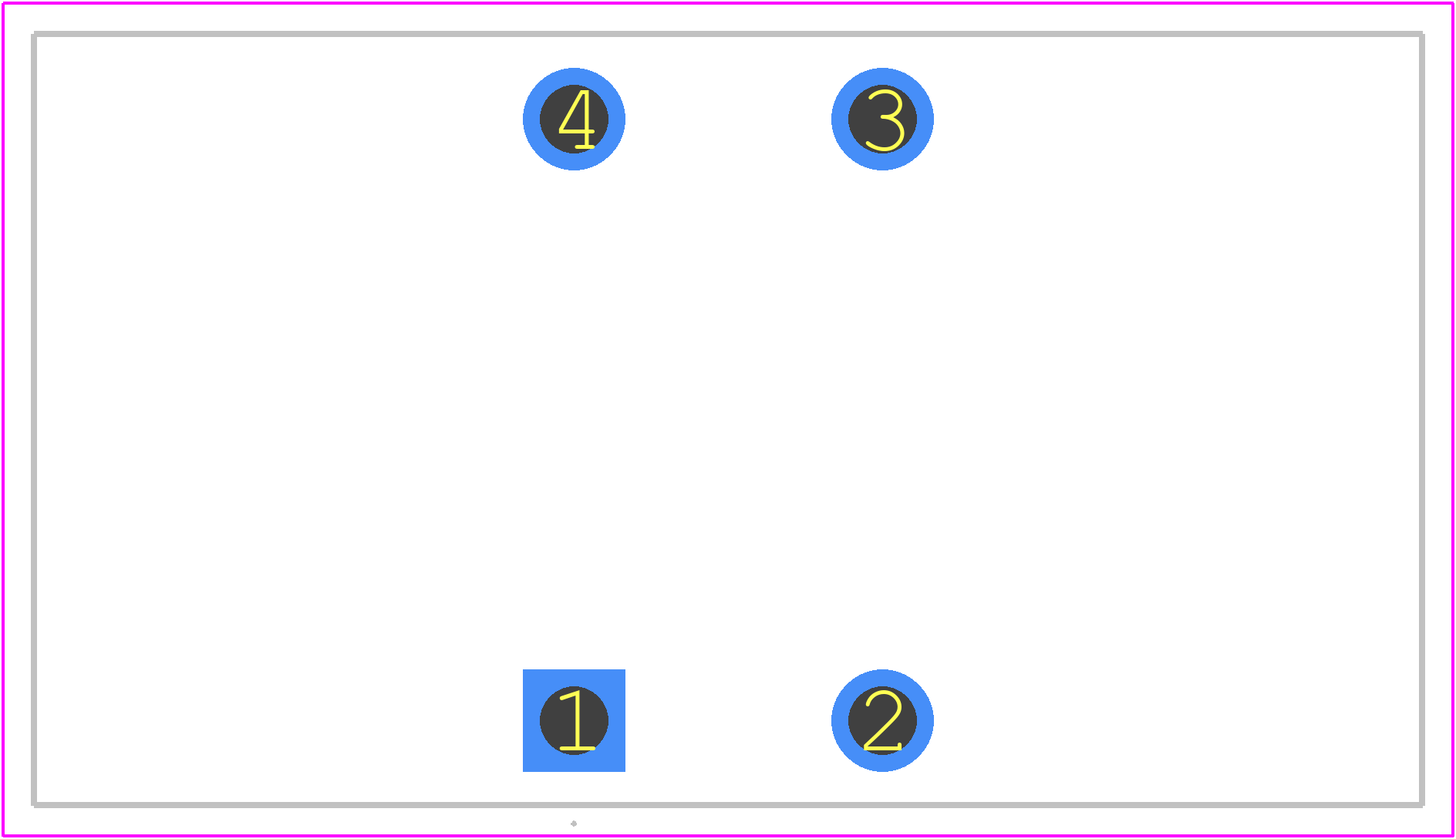

Use the download button to access the B82726S2203A020 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8272,
or try a keyword search, such as Fixed Inductors
