B82726S2243A020 - TDK

Description: 750 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 24A DCR 3.2mOhm (Typ)

Download B82726S2243A020 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82726S2243A020 - TDK - PCB symbol
click to zoom
PCB Footprints

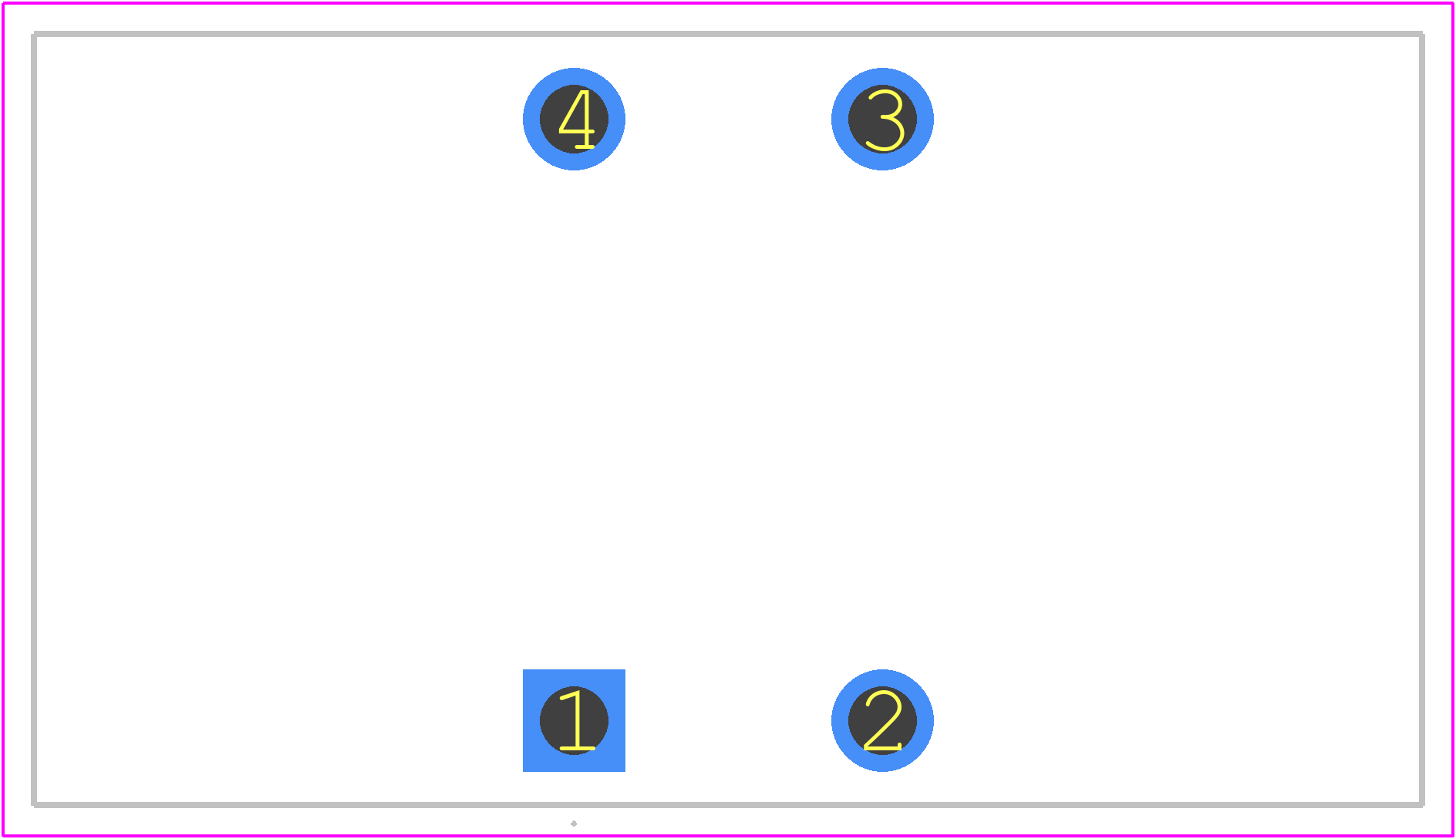

B82726S2243A020 - TDK PCB footprint - Other - Other - B82726S22*3
click to zoom
3D Models
B82726S2243A020 - TDK - 3D model - Other - B82726S22*3
click to zoom

B82726S2243A020 Details

  • Manufacturer Part Number:

    B82726S2243A020

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0032 Ω

  • Inductance-Nom (L):

    750 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    2 mm

  • Lead Length:

    3.5 mm

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    41 mm

  • Package Length:

    45 mm

  • Package Style:

    Radial

  • Package Width:

    25 mm

  • Packing Method:

    Bulk

  • Rated Current-Max:

    24 A

  • Reference Standard:

    EN; VDE

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Special Feature:

    INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    50%

B82726S2243A020 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the B82726S2243A020 can be found in the TDK Corporation's application note or footprint recommendation document, which provides detailed information on the recommended pad layout, solder mask, and soldering guidelines.
  • Proper thermal management is crucial for the B82726S2243A020. Ensure good airflow around the component, and consider using thermal vias or thermal pads on the PCB to dissipate heat. The datasheet provides thermal resistance values, which can be used to estimate the junction temperature.
  • The maximum operating temperature range for the B82726S2243A020 is typically specified in the datasheet, but it's essential to note that the component may have derated performance or reduced lifespan at extreme temperatures. Always check the datasheet or consult with TDK Corporation for specific temperature-related information.
  • The B82726S2243A020 is designed to meet specific mechanical stress requirements, but it's crucial to evaluate the component's suitability for high-vibration or high-shock environments. Consult with TDK Corporation or perform additional testing to ensure the component meets the required mechanical stress specifications.
  • Follow the recommended soldering profile and assembly guidelines provided in the datasheet or TDK Corporation's application notes. Ensure proper solder wetting, and avoid excessive soldering temperatures or times to prevent damage to the component.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B82726S2243A020 Overview

Use the download button to access the B82726S2243A020 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8272, or try a keyword search, such as Fixed Inductors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
