B82726S3223A340 - TDK

Description: Epcos 1.7 mH -30 → +50% Ferrite Toroidal Inductor, Max SRF:10kHz, 25A Idc, 2.75mΩ Rdc B82726S

Download B82726S3223A340 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82726S3223A340 - TDK - PCB symbol
click to zoom
PCB Footprints

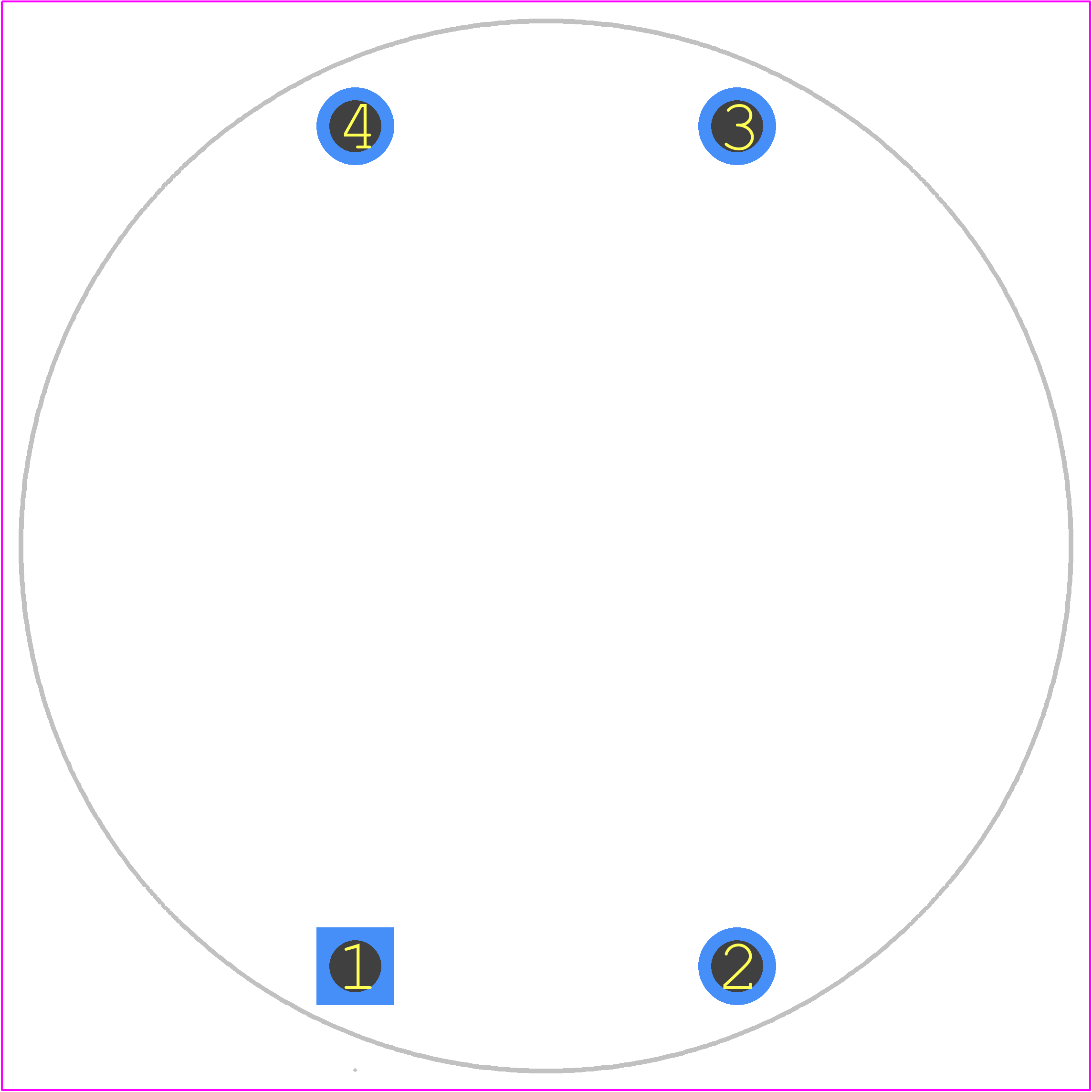

B82726S3223A340 - TDK PCB footprint - Other - Other - B82726S3223A340
click to zoom
3D Models
B82726S3223A340 - TDK - 3D model - Other - B82726S3223A340
click to zoom

B82726S3223A340 Details

  • Manufacturer Part Number:

    B82726S3223A340

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Construction:

    Cylindrical

  • Core Material:

    FERRITE

  • DC Resistance:

    0.00275 Ω

  • Inductance-Nom (L):

    1700 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    2.5 mm

  • Lead Length:

    4 mm

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Diameter:

    55 mm

  • Package Length:

    34 mm

  • Package Style:

    Radial

  • Packing Method:

    Tray

  • Rated Current-Max:

    25 A

  • Reference Standard:

    CUL; EN; UL; VDE

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Special Feature:

    INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.01 MHz

  • Tolerance:

    50%

B82726S3223A340 Frequently Asked Questions (FAQs)

  • TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper performance and minimize parasitic effects.
  • While the datasheet provides some information on high-frequency characteristics, it's essential to consult TDK's application notes and simulation models to understand the inductor's behavior under specific switching conditions. Additionally, engineers can perform their own simulations and testing to validate the inductor's performance.
  • The datasheet specifies the rated voltage, but engineers should also consider the voltage derating curve, which can be found in TDK's application notes or by consulting with their technical support team. This ensures the inductor operates within safe limits and avoids premature failure.
  • TDK provides temperature derating curves and characteristics in their application notes and datasheets. Engineers should consider these temperature effects when designing their system to ensure the inductor operates within specified limits across the entire operating temperature range.
  • The SRF is typically not specified in the datasheet, but it can be calculated using the inductor's specifications and simulation models. Engineers should consider the SRF when designing their system to avoid resonance and ensure proper performance.
