TDK recommends a symmetrical PCB layout with a solid ground plane, and to keep the component away from high-frequency noise sources. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended for optimal performance.
To ensure reliability in high-temperature applications, it is recommended to follow TDK's guidelines for derating the component's operating temperature, and to ensure proper thermal management through heat sinking and airflow. Additionally, consider using a thermally conductive interface material to improve heat transfer.
TDK recommends derating the maximum operating voltage by 10-15% to ensure reliable operation and to prevent premature failure. This is especially important in high-temperature applications or under high-stress operating conditions.
Yes, the B82727E6503A040 is designed to withstand vibrations up to 10G. However, it is recommended to follow TDK's guidelines for vibration testing and to ensure that the component is properly secured to the PCB to prevent mechanical stress.
To troubleshoot issues with the B82727E6503A040, start by verifying the component's operating conditions, including voltage, current, and temperature. Check for signs of physical damage, and ensure that the component is properly soldered to the PCB. If issues persist, consult TDK's application notes and technical support resources for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B82727E6503A040 Overview

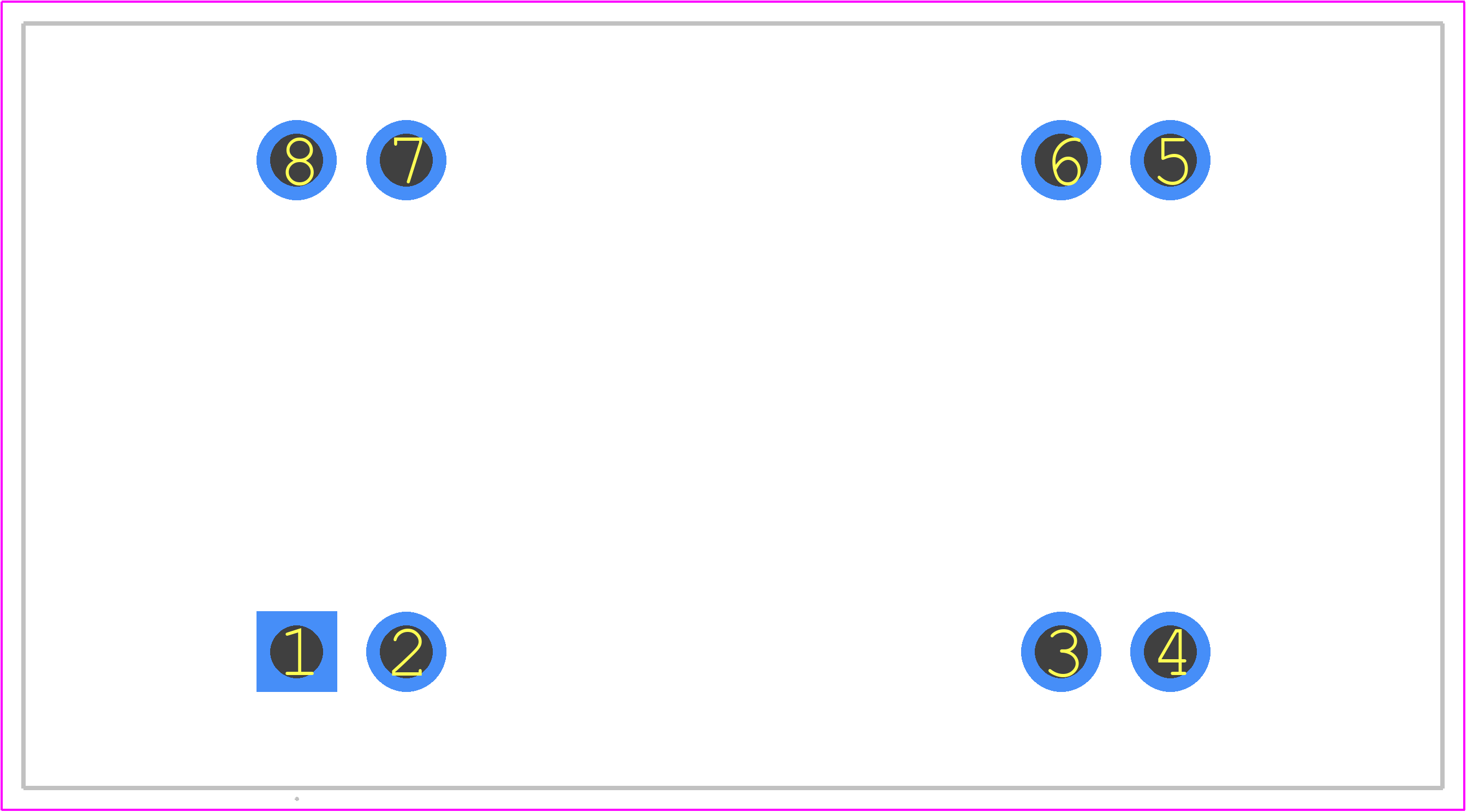

Use the download button to access the B82727E6503A040 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8272,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
