TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper inductor performance and to minimize parasitic effects.
While the datasheet provides some information on high-frequency characteristics, it's essential to consult TDK's application notes and simulation models to understand the inductor's behavior under specific switching conditions. Additionally, engineers can perform their own simulations and testing to validate the inductor's performance in their design.
The datasheet specifies a maximum rated voltage, but it's crucial to consider the voltage rating in conjunction with the operating frequency, temperature, and other environmental factors. Engineers should consult TDK's application notes and perform their own derating calculations to ensure the inductor operates within safe limits.
While the datasheet provides temperature ratings, engineers should consider the inductor's thermal characteristics, such as thermal resistance and temperature coefficient, to ensure reliable operation in high-temperature environments. TDK's application notes and thermal simulation models can provide additional guidance.
To prevent damage and ensure reliability, engineers should follow TDK's recommended storage and handling procedures, which include proper packaging, humidity control, and electrostatic discharge (ESD) protection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B82747E6163A040 Overview

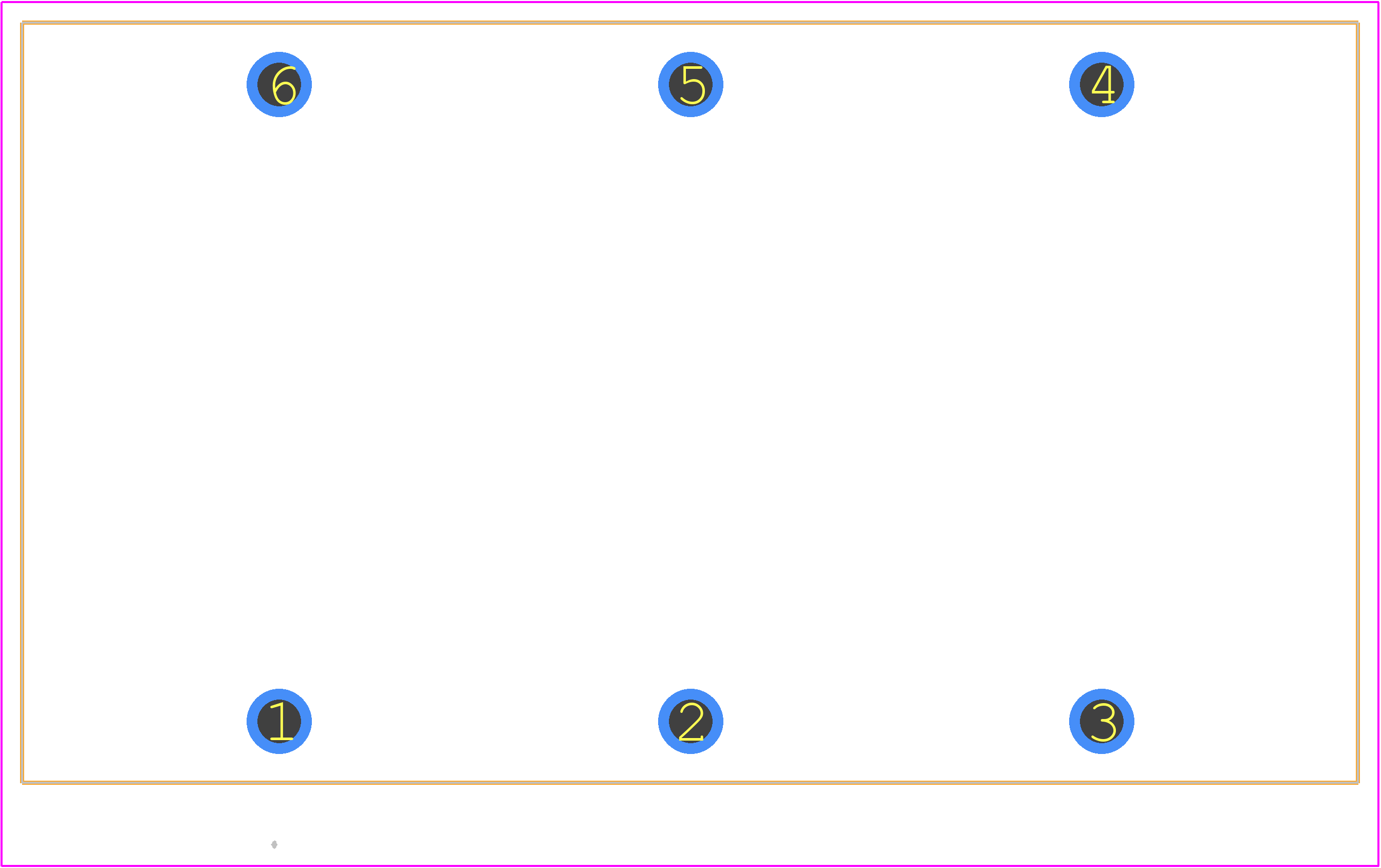

Use the download button to access the B82747E6163A040 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8274,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
