B82747E6353A040 - TDK

Description: Epcos 0.57 mH -30 → +50% Ferrite Toroidal Inductor, Max SRF:100kHz, 35A Idc, 1.4mΩ Rdc B82747E

Download B82747E6353A040 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82747E6353A040 - TDK - PCB symbol
click to zoom
PCB Footprints

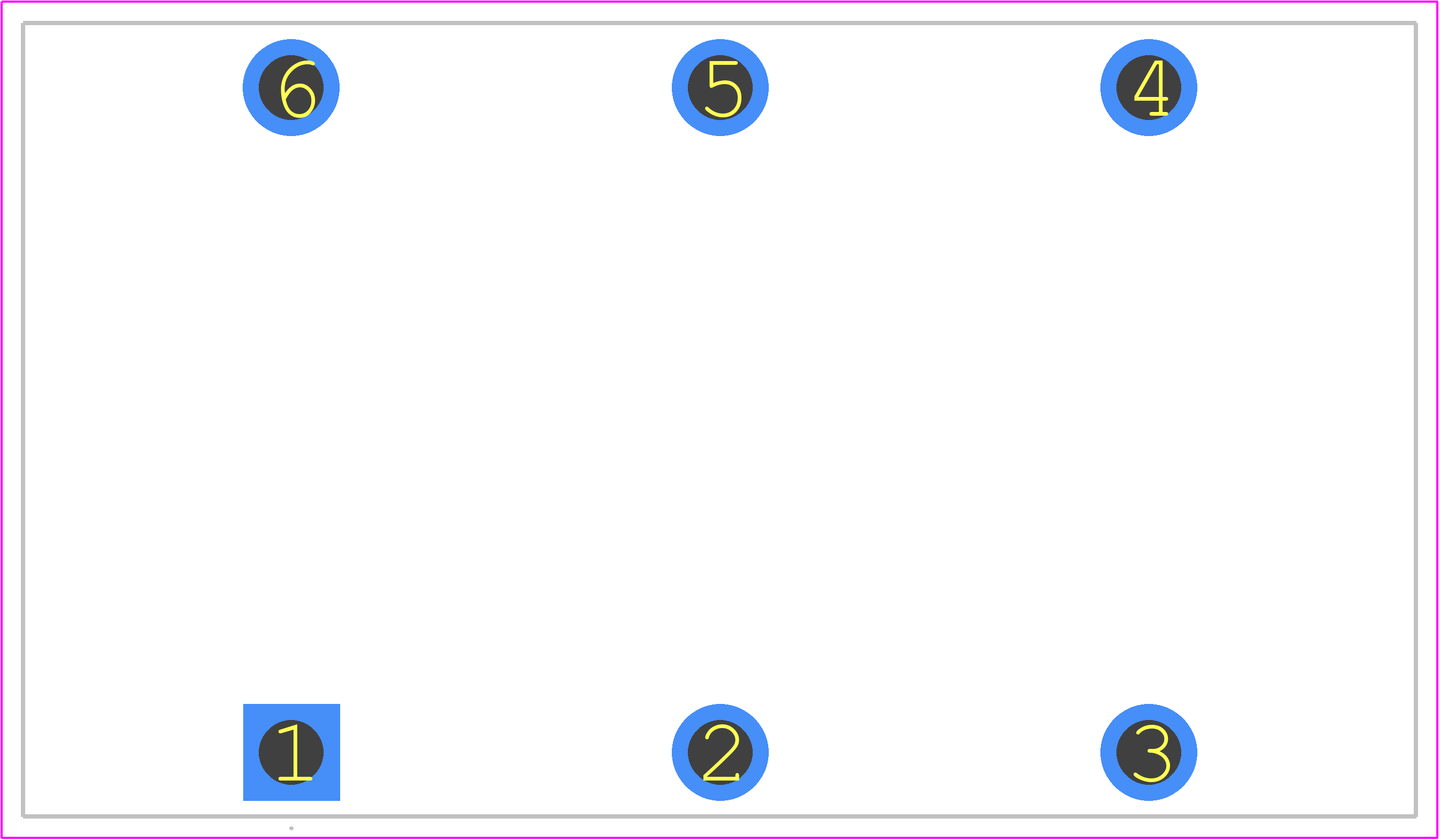

B82747E6353A040 - TDK PCB footprint - Other - Other - B82747E6353A040-3
click to zoom
3D Models
B82747E6353A040 - TDK - 3D model - Other - B82747E6353A040-3
click to zoom

B82747E6353A040 Details

  • Manufacturer Part Number:

    B82747E6353A040

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0014 Ω

  • Inductance-Nom (L):

    570 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    2.8 mm

  • Lead Length:

    4 mm

  • Number of Functions:

    3

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    66 mm

  • Package Length:

    65 mm

  • Package Style:

    Radial

  • Package Width:

    37 mm

  • Packing Method:

    Bulk

  • Rated Current-Max:

    35 A

  • Reference Standard:

    EN; VDE

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Special Feature:

    INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    50%

B82747E6353A040 Frequently Asked Questions (FAQs)

  • TDK recommends a symmetrical PCB layout with a ground plane underneath the inductor to minimize radiation and ensure optimal performance. A minimum of 1.5 mm clearance around the inductor is also recommended.
  • The B82747E6353A040 is rated for operation up to 125°C, but derating may be necessary for high-temperature applications. Consult TDK's application notes for guidance on temperature derating and thermal management.
  • TDK recommends a soldering profile with a peak temperature of 260°C and a dwell time of 10-30 seconds. A soldering iron with a temperature range of 350-400°C is also recommended.
  • The B82747E6353A040 is designed to withstand moderate vibration, but extreme vibration may affect its performance. Consult TDK's application notes for guidance on vibration testing and mitigation strategies.
  • The B82747E6353A040 is designed for high-frequency switching applications, but core losses and skin effect may become significant at high frequencies. Consult TDK's application notes for guidance on high-frequency design considerations.
