B82748S6623N030 - TDK

Description: Power Line Chokes, L=1.1mH Rated current=62A, LxWxT:98.3mmx98.3mmx54mm

Download B82748S6623N030 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82748S6623N030 - TDK - PCB symbol
click to zoom

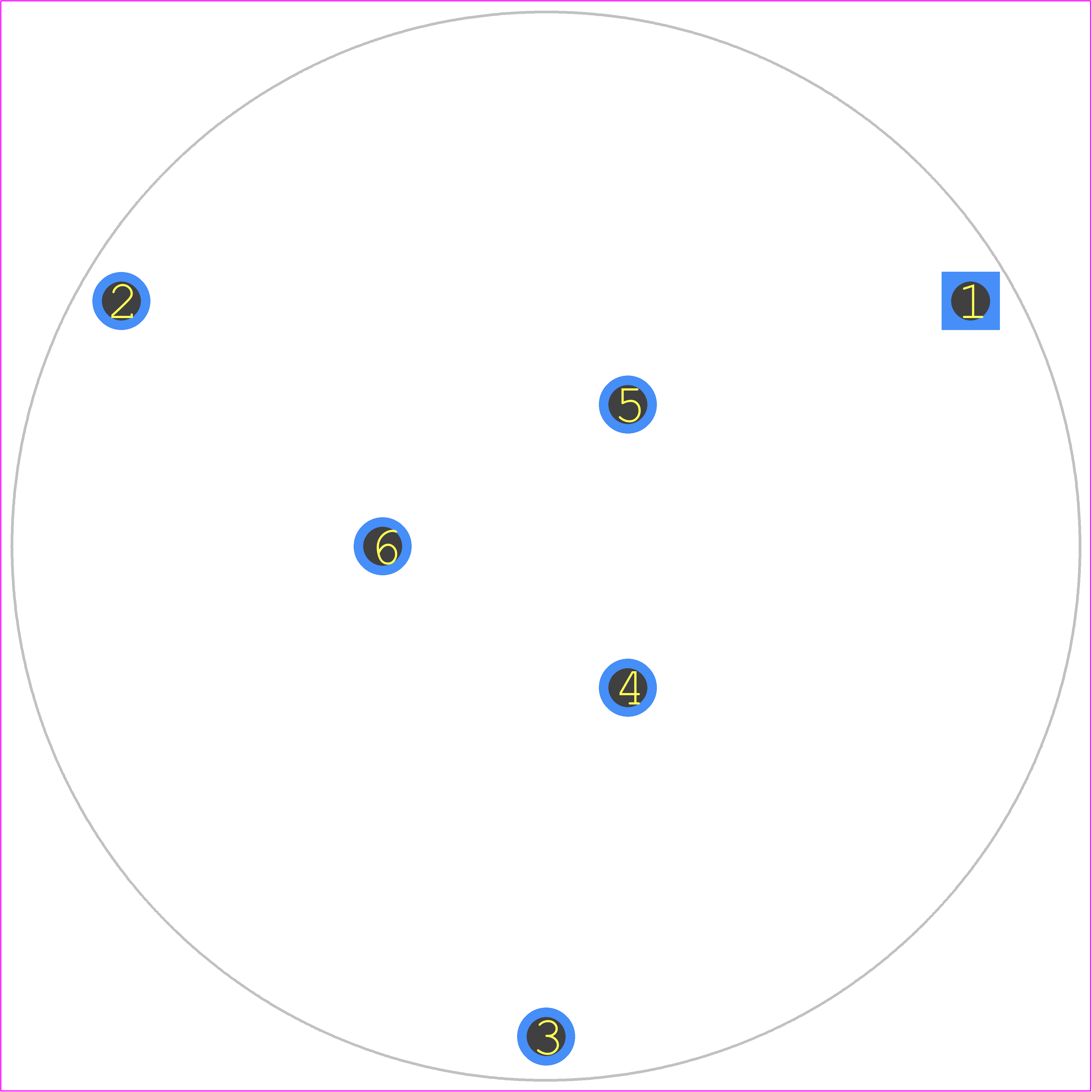

PCB Footprints
B82748S6623N030 - TDK PCB footprint - Other - Other - B82748S6623N030
click to zoom
3D Models
B82748S6623N030 - TDK - 3D model - Other - B82748S6623N030
click to zoom

B82748S6623N030 Details

  • Manufacturer Part Number:

    B82748S6623N030

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Construction:

    Circular

  • DC Resistance:

    0.0016 Ω

  • Inductance-Nom (L):

    1100 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    3.35 mm

  • Lead Length:

    4 mm

  • Number of Functions:

    3

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Diameter:

    98 mm

  • Package Length:

    54 mm

  • Package Style:

    Radial

  • Packing Method:

    Bulk

  • Rated Current-Max:

    48 A

  • Reference Standard:

    CUL; EN; IEC60938-2; UL

  • Shape/Size Description:

    CIRCULAR PACKAGE

  • Shielded:

    NO

  • Special Feature:

    INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.01 MHz

  • Tolerance:

    30%

B82748S6623N030 Frequently Asked Questions (FAQs)

  • TDK provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • While the datasheet provides some information on high-frequency characteristics, it's essential to consult TDK's application notes or contact their technical support for more detailed information on the inductor's behavior under specific switching conditions.
  • The datasheet specifies the rated voltage, but it's crucial to consider the maximum allowable voltage, including any voltage spikes or transients, to ensure the inductor's reliability and prevent damage.
  • While the datasheet provides some temperature-related information, it's essential to consult TDK's application notes or contact their technical support for more detailed information on the inductor's performance changes with temperature, including any derating factors.
  • The SRF is not always specified in the datasheet, but it's a critical parameter that can affect the inductor's performance. Consult TDK's application notes or contact their technical support for more information on the SRF and its impact on the design.
