B84110A0000A020 - TDK

Description: Power Line EMC Filters, 1-phase(250V), Rated Current:2A, PCB type

Download B84110A0000A020 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B84110A0000A020 - TDK - PCB symbol
click to zoom
PCB Footprints

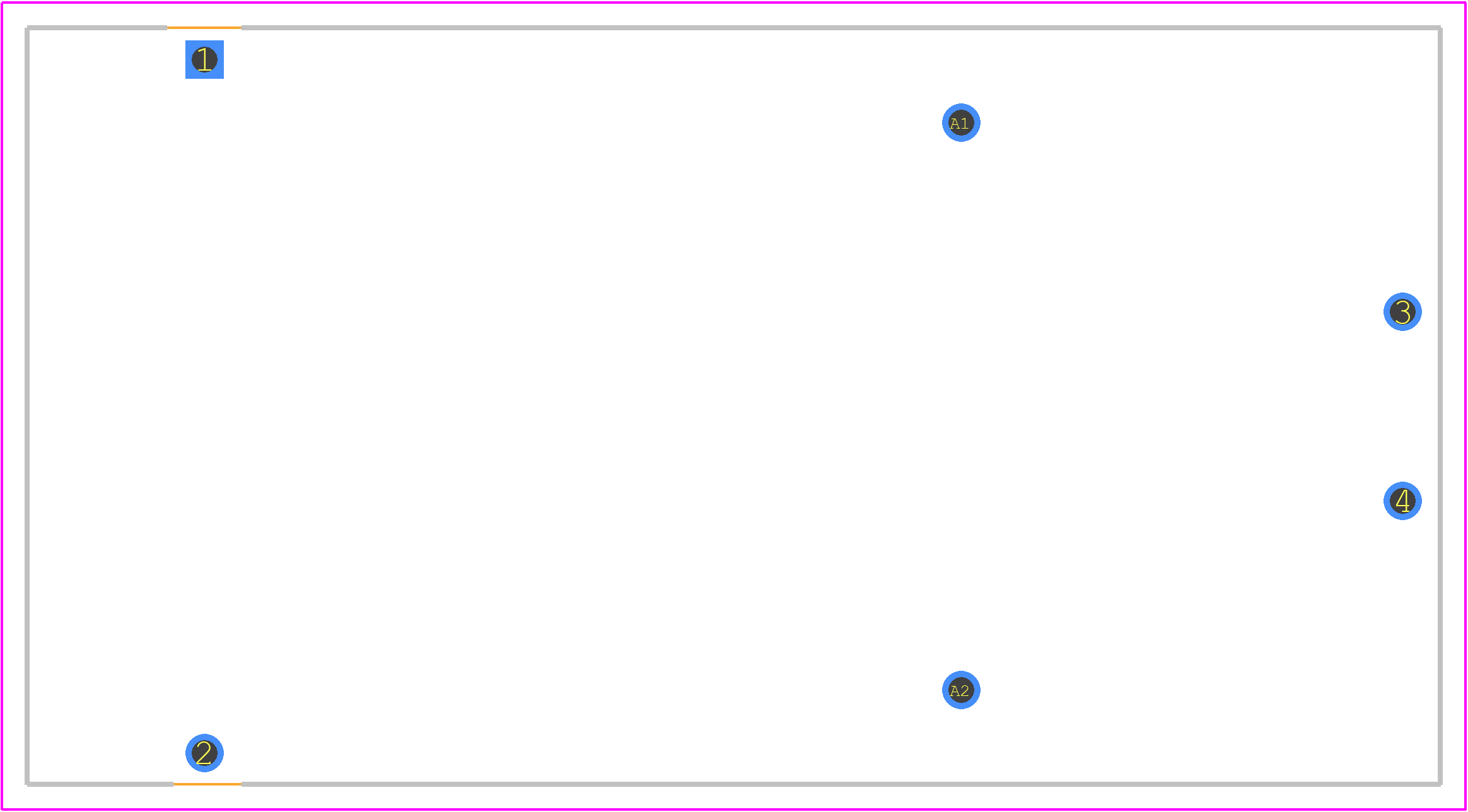

B84110A0000A020 - TDK PCB footprint - Other - Other - B84110A0000A020-2
click to zoom
3D Models
B84110A0000A020 - TDK - 3D model - Other - B84110A0000A020-2
click to zoom

B84110A0000A020 Details

  • Manufacturer Part Number:

    B84110A0000A020

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    8.15

  • Additional Feature:

    INDUCTANCE 5.6 MILLI HENRY

  • Approvals:

    UL; CSA; ENEC-10

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    23 mm

  • High Pot:

    2700 V

  • JESD-609 Code:

    e3

  • Leakage Current-Max:

    0.5 mA

  • Length:

    56 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Operating Frequency:

    50/60Hz Hz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -25 °C

  • Rated Current:

    2 A

  • Rated Voltage:

    250 V

  • Terminal Finish:

    TIN

  • Width:

    30 mm
