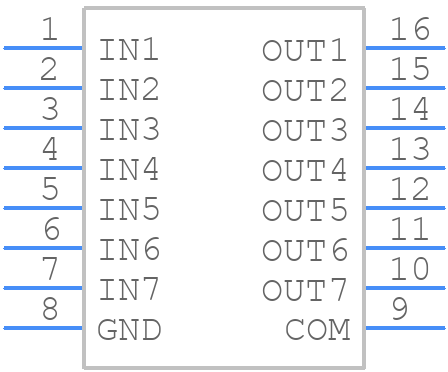

BA12003DF-ZE2 - ROHM Semiconductor

BA12003DF-ZE2 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  ROHM recommends a 2-layer or 4-layer PCB with a thermal relief pattern under the IC to improve heat dissipation. A minimum of 1 oz copper thickness is recommended for the PCB.
• How do I ensure stable operation with a single-supply voltage?
  To ensure stable operation with a single-supply voltage, ROHM recommends using a decoupling capacitor (e.g., 10uF) between VCC and GND, and a bypass capacitor (e.g., 100nF) between VCC and AVCC.
• What is the maximum allowable power dissipation for this device?
  The maximum allowable power dissipation for the BA12003DF-ZE2 is 1.5W. Exceeding this limit may cause the device to overheat and potentially fail.
• Can I use this device in a high-temperature environment?
  The BA12003DF-ZE2 is rated for operation up to 85°C. However, ROHM recommends derating the power dissipation by 1.5mW/°C above 70°C to ensure reliable operation.
• How do I handle ESD protection for this device?
  ROHM recommends using ESD protection devices (e.g., TVS diodes) on the input and output pins to prevent damage from electrostatic discharge.
