A good PCB layout for the BA14741F-E2 should prioritize thermal dissipation. Place the IC near a thermal pad or a heat sink, and ensure good copper coverage around the IC. Avoid routing high-current traces near the IC to minimize thermal resistance.
To ensure stable operation with a single-supply voltage, decouple the input and output pins with capacitors (e.g., 10uF and 100nF) and use a low-ESR capacitor (e.g., 10uF) for the output filter. Also, ensure the input voltage is within the recommended range (4.5V to 18V).
The maximum allowable power dissipation for the BA14741F-E2 is 1.5W. However, this value can vary depending on the ambient temperature and PCB layout. It's essential to calculate the power dissipation based on the specific application and ensure the IC is operated within the recommended temperature range (-40°C to 105°C).
While the BA14741F-E2 is rated for operation up to 105°C, it's essential to consider the derating curve for power dissipation at high temperatures. Ensure the IC is operated within the recommended temperature range, and consider using a heat sink or thermal pad to maintain a safe junction temperature.
To troubleshoot oscillation or instability issues, check the PCB layout for any signs of resonance or noise coupling. Ensure the input and output capacitors are properly selected and placed. Also, verify the input voltage is within the recommended range, and the output is properly filtered. If issues persist, consult the application notes or contact ROHM Semiconductor support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

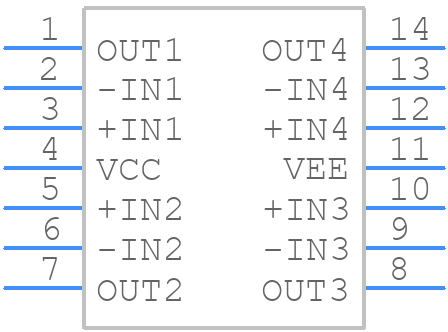

BA14741F-E2 Overview
Use the download button to access the BA14741F-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BA147,
or try a keyword search, such as Operational Amplifiers
