ROHM recommends a 4-layer PCB with a solid ground plane and a separate power plane for the IC. The input and output pins should be routed away from each other to minimize noise coupling. Additionally, decoupling capacitors should be placed close to the IC to reduce noise and improve stability.
To ensure the BA2902SF-E2 operates within its recommended operating conditions, the input voltage should be within the range of 2.7V to 5.5V, and the operating temperature should be between -40°C to 85°C. Additionally, the IC should be operated within its recommended current consumption range to prevent overheating and ensure reliable operation.
The maximum power dissipation of the BA2902SF-E2 is 500mW. However, this value can vary depending on the operating conditions and the PCB layout. It's recommended to perform thermal simulations and measurements to ensure the IC operates within its safe operating area.
While the BA2902SF-E2 is rated for operation up to 85°C, it's not recommended to use it in high-temperature environments above 85°C without proper heat sinking and thermal management. Prolonged exposure to high temperatures can reduce the IC's lifespan and affect its performance.
To troubleshoot issues with the BA2902SF-E2, start by checking the input voltage and current consumption to ensure they are within the recommended operating conditions. Next, verify the PCB layout and routing to ensure they meet the recommended guidelines. If the issue persists, use an oscilloscope to check the output waveform and verify it meets the expected specifications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BA2902SF-E2 Overview

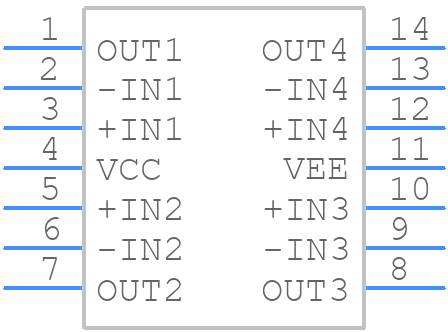

Use the download button to access the BA2902SF-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BA290,
or try a keyword search, such as Operational Amplifiers
