ROHM recommends a 4-layer PCB with a solid ground plane and a separate power plane for the IC. The input and output pins should be routed away from each other to minimize noise coupling. Additionally, the decoupling capacitors should be placed as close as possible to the IC.
To ensure the BA2902YF-CE2 operates within its recommended operating conditions, the input voltage should be within the range of 2.7V to 5.5V, and the operating temperature should be within the range of -40°C to 85°C. Additionally, the device should be operated within its recommended current consumption and power dissipation limits.
The recommended input capacitor value for the BA2902YF-CE2 is 1uF to 10uF, with a voltage rating of 6.3V or higher. The capacitor should be a low-ESR type, such as a ceramic or film capacitor, to minimize noise and ensure stable operation.
While the BA2902YF-CE2 is rated for operation up to 85°C, it's not recommended for use in high-temperature environments above 85°C. Prolonged exposure to high temperatures can reduce the device's reliability and lifespan. If high-temperature operation is required, consider using a device with a higher temperature rating or implementing additional cooling measures.
To troubleshoot issues with the BA2902YF-CE2, start by verifying the input voltage and current consumption are within the recommended ranges. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to verify the output voltage and frequency are within the expected ranges. If issues persist, consult the datasheet and application notes for guidance or contact ROHM support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BA2902YF-CE2 Overview

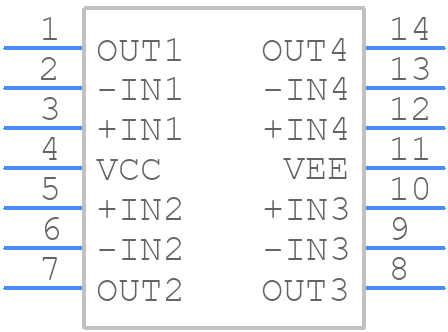

Use the download button to access the BA2902YF-CE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BA290,
or try a keyword search, such as Operational Amplifiers
