BA3474WFV-CE2 - ROHM Semiconductor

Description: High Speed Ground Sense Operational Amplifier for Automotive

Download BA3474WFV-CE2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

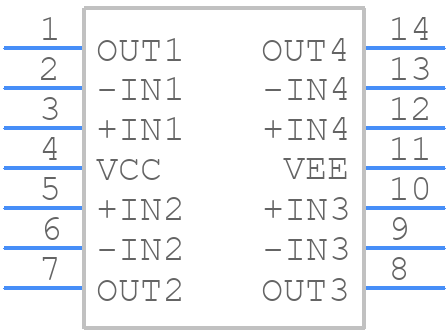

Symbol
BA3474WFV-CE2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BA3474WFV-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-B14
click to zoom
3D Models
BA3474WFV-CE2 - ROHM Semiconductor - 3D model - Small Outline Packages - SSOP-B14
click to zoom

BA3474WFV-CE2 Details

  • Manufacturer Part Number:

    BA3474WFV-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Common-mode Reject Ratio-Nom:

    97 dB

  • Input Offset Voltage-Max:

    7500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.35 mm

  • Slew Rate-Nom:

    10 V/us

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    4000

  • Width:

    4.4 mm

BA3474WFV-CE2 Frequently Asked Questions (FAQs)

  • ROHM recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure stable operation with a single power supply, ROHM recommends decoupling capacitors (e.g., 10uF) between VCC and GND, and using a low-ESR capacitor (e.g., 1uF) between AVCC and GND.
  • The maximum allowed voltage on the analog input pins is VCC + 0.3V. Exceeding this voltage may cause damage to the device.
  • While the BA3474WFV-CE2 is rated for operation up to 85°C, ROHM recommends derating the power consumption and using a heat sink to ensure reliable operation in high-temperature environments.
  • ROHM recommends checking the power supply voltage, ensuring correct pin connections, and verifying the clock signal frequency and amplitude. If issues persist, consult the application notes and contact ROHM support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BA3474WFV-CE2 Overview

Use the download button to access the BA3474WFV-CE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BA347, or try a keyword search, such as Operational Amplifiers
