BA3812L - ROHM Semiconductor

Description: Audio DSPs Integrated Circuits (ICs), 5-channel graphic equalizer, IQ 5mA, Vom 2.1V, Package ZIP18

Download BA3812L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

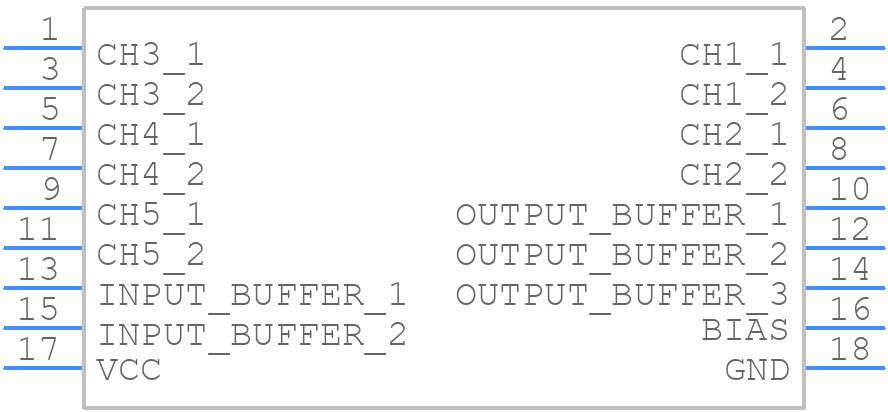

BA3812L - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

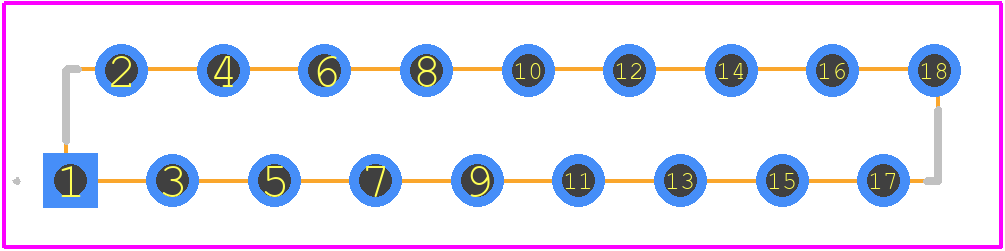

BA3812L - ROHM Semiconductor PCB footprint - Other - Other - BA3812L-2
click to zoom
3D Models
BA3812L - ROHM Semiconductor - 3D model - Other - BA3812L-2
click to zoom

BA3812L Details

  • Manufacturer Part Number:

    BA3812L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZIP

  • Package Description:

    ZIP-18

  • Pin Count:

    18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Consumer IC Type:

    EQUALIZER CIRCUIT

  • Harmonic Distortion:

    0.01%

  • JESD-30 Code:

    R-PZIP-T18

  • JESD-609 Code:

    e3/e2

  • Length:

    21.8 mm

  • Number of Bands:

    1

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP18,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    8.4 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    TIN/TIN COPPER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    2.8 mm

BA3812L Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the BA3812L is 4.5V to 16V, although it can operate up to 18V with reduced performance.
  • To ensure stability and oscillation at the desired frequency, make sure to follow the recommended component values and PCB layout guidelines, and use a stable power supply with minimal noise and ripple.
  • The maximum power dissipation of the BA3812L is 1.5W, but this can be affected by the operating voltage, current, and ambient temperature. Be sure to follow the thermal design guidelines to ensure reliable operation.
  • Yes, the BA3812L can be used in switching regulator applications, but it's essential to follow the recommended design guidelines and ensure the device is operated within its specified limits to avoid overheating or damage.
  • To protect the BA3812L from overvoltage and overcurrent, use voltage regulators, zener diodes, or transient voltage suppressors to limit the input voltage, and consider adding overcurrent protection devices such as fuses or PTC thermistors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BA3812L Overview

Use the download button to access the BA3812L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BA381, or try a keyword search, such as Audio Control ICs
