BA3830S - ROHM Semiconductor

BA3830S Details

• Manufacturer Part Number:

  BA3830S

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

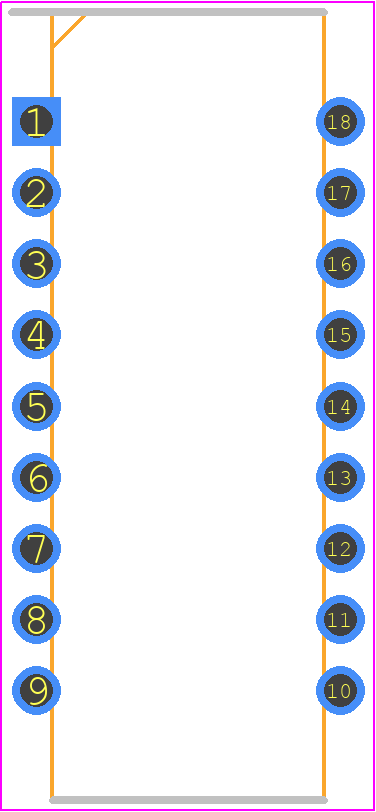

• Package Description:

  SDIP-18

• Pin Count:

  18

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  ROHM Semiconductor

• Active Filter Type:

  SWITCHED CAPACITOR FILTER

• JESD-30 Code:

  R-PDIP-T18

• JESD-609 Code:

  e3/e2

• Length:

  19.4 mm

• Number of Functions:

  1

• Number of Terminals:

  18

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -25 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SDIP

• Package Equivalence Code:

  SDIP18,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Response:

  BANDPASS

• Seated Height-Max:

  4.76 mm

• Supply Current-Max (Isup):

  5.2 mA

• Supply Voltage-Max (Vsup):

  8 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN/TIN COPPER

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.778 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10

• Transfer Characteristics:

  RESISTOR PROGRAMMABLE

• Width:

  7.62 mm
