BA6566 - ROHM Semiconductor

Description: IC SPEECH NETWORK DIP18

Download BA6566 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

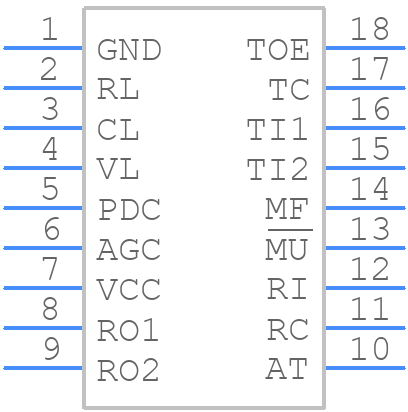

BA6566 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BA6566 - ROHM Semiconductor PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - BA6566
click to zoom
3D Models
BA6566 - ROHM Semiconductor - 3D model - Dual-In-Line Packages - BA6566
click to zoom

BA6566 Details

  • Manufacturer Part Number:

    BA6566

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-18

  • Pin Count:

    18

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    ROHM Semiconductor

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e3/e2

  • Length:

    22.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -35 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.25 mm

  • Supply Current-Max:

    0.125 mA

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    TELEPHONE SPEECH CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN/TIN COPPER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    7.62 mm

BA6566 Frequently Asked Questions (FAQs)

  • A good PCB layout for the BA6566 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • The choice of external components such as resistors, capacitors, and inductors depends on the specific application and operating frequency. ROHM provides a reference design and calculation formulas in the datasheet and application notes to help with component selection.
  • The BA6566 has an absolute maximum input voltage rating of 18V, but the recommended operating input voltage range is 6.5V to 16V. Exceeding the maximum rating can damage the IC.
  • The BA6566 has an operating temperature range of -40°C to 105°C, but the IC's performance and reliability may degrade at high temperatures. It's essential to consider thermal design and heat dissipation in high-temperature applications.
  • Common issues with the BA6566 can be troubleshooted by checking the PCB layout, component values, and input/output connections. ROHM provides application notes and FAQs that provide guidance on troubleshooting and debugging techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BA6566 Overview

Use the download button to access the BA6566 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BA656, or try a keyword search, such as Telephone Circuits

Parts related to BA6566

Showing 0 results
