Description:Power Supply voltage 7.0V, power dissipation 1000* mW, Operating temperature -20~+70, storage temperature -55~+125, Maximum output drive current 60mA, Maximum display switch driver current 30mA
ROHM provides a recommended PCB layout in the application note AN11952, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
The datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Additionally, ROHM's application notes and design guides provide more detailed information on component selection and optimization.
The BA6822S is rated for operation from -40°C to +105°C, but the maximum ambient temperature range may vary depending on the specific application and thermal design. It's recommended to consult with ROHM's technical support or application notes for more information.
The BA6822S is designed for low-voltage applications up to 5V. While it may be possible to use it in a high-voltage application with proper design and protection, it's not recommended without consulting with ROHM's technical support and performing thorough testing and validation.
ROHM provides a troubleshooting guide in the application note AN11953, which covers common issues and their solutions. Additionally, ROHM's technical support team is available to provide assistance with troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BA6822S Overview

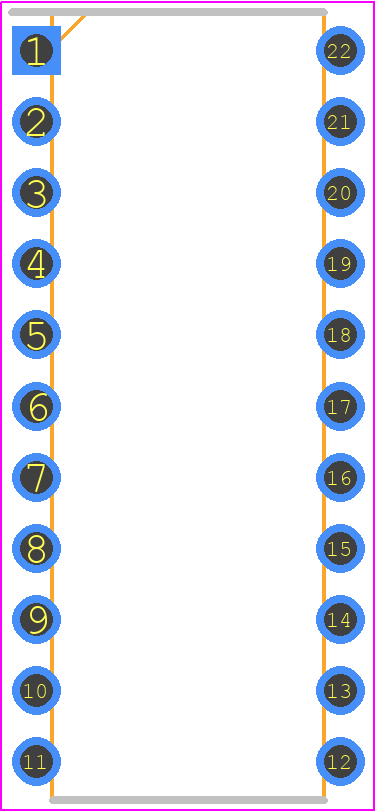

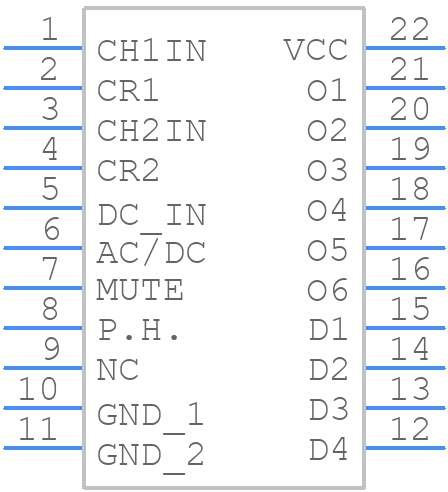

Use the download button to access the BA6822S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BA682,
or try a keyword search, such as Display Drivers
