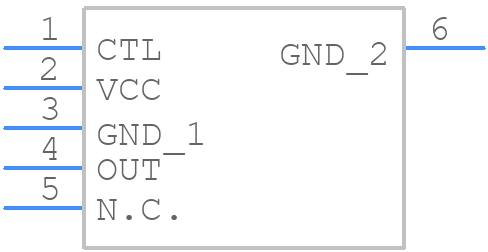

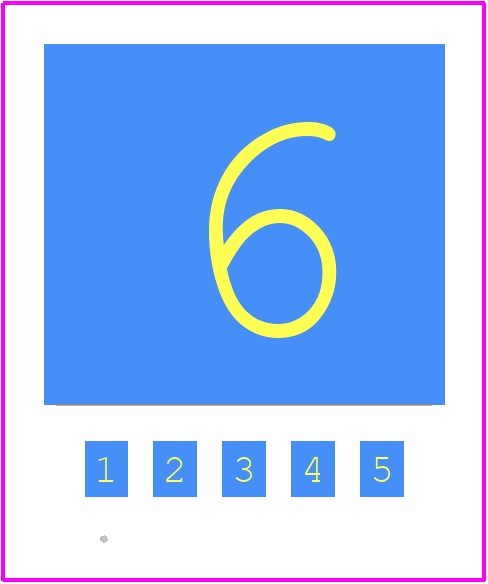

BA90DD0WHFP-TR - ROHM Semiconductor

BA90DD0WHFP-TR Details

• Manufacturer Part Number:

  BA90DD0WHFP-TR

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  MODULE

• Package Description:

  HRP-5

• Pin Count:

  5

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  0

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.7 V

• Dropout Voltage1-Nom:

  0.45 V

• Input Voltage Absolute-Max:

  36 V

• Input Voltage-Max:

  25 V

• Input Voltage-Min:

  3 V

• JESD-30 Code:

  R-PSSO-G5

• JESD-609 Code:

  e2

• Length:

  9.395 mm

• Line Regulation-Max:

  0.05%

• Load Regulation-Max(%):

  0.2%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  2 A

• Output Voltage1-Max:

  9.09 V

• Output Voltage1-Min:

  8.91 V

• Output Voltage1-Nom:

  9 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SMSIP5H,.41,67TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR, RIGHT

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  2.005 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Tin/Copper (Sn/Cu)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.72 mm

• Terminal Position:

  SINGLE

• Voltage Tolerance-Max:

  1%

• Width:

  8 mm
