ROHM provides a recommended PCB layout in the application note AN11984, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference.
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. ROHM recommends using capacitors with a voltage rating of at least 2x the input voltage, and a capacitance value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor.
The BA9744FV-E2 is rated for operation in an ambient temperature range of -40°C to +85°C, but the maximum junction temperature (TJ) should not exceed 125°C. Engineers should ensure that the device is properly cooled and thermal management is implemented to prevent overheating.
Yes, the BA9744FV-E2 is suitable for high-reliability and automotive applications. ROHM provides a range of reliability and quality certifications, including AEC-Q100, IATF 16949, and ISO 9001, to ensure the device meets the required standards for these applications.
ROHM provides a troubleshooting guide in the application note AN11984, which covers common issues and their solutions, including oscillation, instability, and overheating. Engineers can also contact ROHM's technical support team for assistance with troubleshooting and debugging.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
BA9744FV-E2 Overview

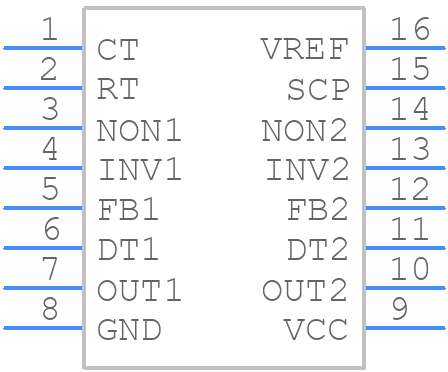

Use the download button to access the BA9744FV-E2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like BA974,
or try a keyword search, such as Switching Regulator or Controllers
