BALF-112X-01D3 - STMicroelectronics

Description: Signal Conditioning 50Ohm / conjugate match to CC1120, CC1125 868MHz & 915MHz Balun Transformer & Integrated Filtering

Download BALF-112X-01D3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

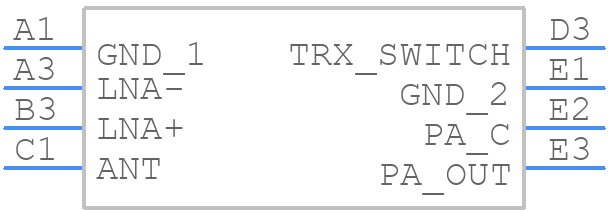

Symbol
BALF-112X-01D3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
BALF-112X-01D3 - STMicroelectronics PCB footprint - Other - Other - BALF-112X-01D3-2
click to zoom
3D Models
BALF-112X-01D3 - STMicroelectronics - 3D model - Other - BALF-112X-01D3-2
click to zoom

BALF-112X-01D3 Details

  • Manufacturer Part Number:

    BALF-112X-01D3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer Package Code:

    Chip Scale Package 0.4mm pitch

  • Country Of Origin:

    France

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Cut-off Frequency-Max:

    928 MHz

  • Cut-off Frequency-Min:

    866 MHz

  • Height:

    0.63 mm

  • Insertion Loss:

    -2.8 dB

  • Length:

    1.95 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.45 mm

BALF-112X-01D3 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, trace routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The choice of impedance matching network depends on the specific application and frequency range. STMicroelectronics provides a matching network design guide in the application note AN5323, which includes examples and calculations to help engineers design an optimal matching network for their specific use case.
  • The maximum power handling capability of the BALF-112X-01D3 is 2W. However, it's essential to consider the specific application and operating conditions to ensure the component is not subjected to excessive power, which can lead to degradation or failure.
  • STMicroelectronics provides a recommended soldering and mounting procedure in the datasheet, which includes guidelines for reflow soldering, wave soldering, and manual soldering. It's essential to follow these guidelines to ensure reliable connections and prevent damage to the component.
  • The BALF-112X-01D3 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as heat sinks, thermal vias, and proper PCB design, to keep the component temperature within the recommended range.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BALF-112X-01D3 Overview

Use the download button to access the BALF-112X-01D3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BALF-, or try a keyword search, such as RF Transformers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
