BALFHB-WL-01D3 - STMicroelectronics

Description: 50 Ω nominal input / conjugate match balun to BGA-4L STM32WL in high power mode, 862-928 MHz with integrated harmonic filter

Download BALFHB-WL-01D3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

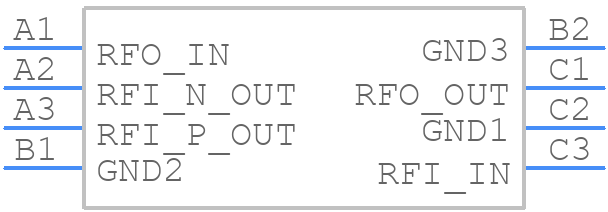

BALFHB-WL-01D3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
BALFHB-WL-01D3 - STMicroelectronics PCB footprint - Other - Other - CSPG 8_H=0.68 mm
click to zoom
3D Models
BALFHB-WL-01D3 - STMicroelectronics - 3D model - Other - CSPG 8_H=0.68 mm
click to zoom

BALFHB-WL-01D3 Details

  • Manufacturer Part Number:

    BALFHB-WL-01D3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Additional Feature:

    HEIGHT DIM INCLUDE TERMINAL ALSO

  • Cut-off Frequency-Min:

    862 MHz

  • Height:

    0.68 mm

  • Insertion Loss:

    1.45 dB

  • Length:

    2.15 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.88 mm

BALFHB-WL-01D3 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BALFHB-WL-01D3 is -40°C to +85°C.
  • To configure the BALFHB-WL-01D3 for optimal performance, follow the recommended layout and design guidelines provided in the datasheet, and ensure proper impedance matching and decoupling.
  • The maximum power handling capability of the BALFHB-WL-01D3 is 30 dBm (1W).
  • Yes, the BALFHB-WL-01D3 is a general-purpose balun filter that can be used in various wireless applications, including Bluetooth, Zigbee, and other ISM band devices.
  • To troubleshoot issues with the BALFHB-WL-01D3, check the PCB layout and design for any errors or inconsistencies, ensure proper component placement and soldering, and verify the input and output impedance matching.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BALFHB-WL-01D3 Overview

Use the download button to access the BALFHB-WL-01D3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BALFH, or try a keyword search, such as RF Transformers
