BAS40S-AU_R1_000A1 - PANJIT

Description: Diode Array 1 Pair Series Connection 40 V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3

Download BAS40S-AU_R1_000A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

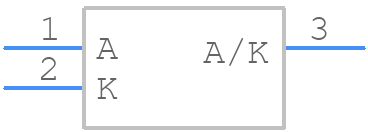

BAS40S-AU_R1_000A1 - PANJIT - PCB symbol
click to zoom
PCB Footprints
BAS40S-AU_R1_000A1 - PANJIT PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SOT-23
click to zoom
3D Models
BAS40S-AU_R1_000A1 - PANJIT - 3D model - SOT23 (3-Pin) - SOT-23
click to zoom

BAS40S-AU_R1_000A1 Details

  • Manufacturer Part Number:

    BAS40S-AU_R1_000A1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.70

  • Manufacturer:

    PanJit Semiconductor

  • YTEOL:

    6

  • Application:

    GENERAL PURPOSE

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Number of Elements:

    2

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    0.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Dissipation-Max:

    0.225 W

  • Reference Standard:

    AEC-Q101; TS 16949

  • Rep Pk Reverse Voltage-Max:

    40 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

BAS40S-AU_R1_000A1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BAS40S-AU_R1_000A1 is -55°C to 150°C.
  • The BAS40S-AU_R1_000A1 is a sensitive component and requires careful handling. It's recommended to follow the standard SMD assembly and soldering guidelines, and to avoid excessive heat, mechanical stress, and electrostatic discharge.
  • The maximum allowable power dissipation for the BAS40S-AU_R1_000A1 is 250 mW. Exceeding this limit may cause the device to fail or degrade over time.
  • Yes, the BAS40S-AU_R1_000A1 is suitable for high-frequency applications up to several hundred MHz. However, it's essential to consider the device's parasitic capacitance and inductance when designing the circuit.
  • To ensure the reliability and longevity of the BAS40S-AU_R1_000A1, follow the recommended operating conditions, handle the device with care, and avoid exposing it to excessive voltage, current, or temperature stress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BAS40S-AU_R1_000A1 Overview

Use the download button to access the BAS40S-AU_R1_000A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BAS40, or try a keyword search, such as Rectifier Diodes
