BAT54AT-7-F - Diodes Incorporated

BAT54AT-7-F Details

• Manufacturer Part Number:

  BAT54AT-7-F

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  3

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.70

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Diodes Incorporated

• YTEOL:

  6

• Additional Feature:

  HIGH RELIABILITY

• Application:

  GENERAL PURPOSE

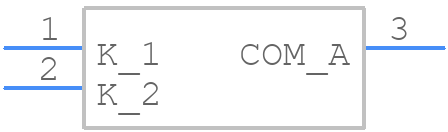

• Configuration:

  COMMON ANODE, 2 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  0.24 V

• JESD-30 Code:

  R-PDSO-G3

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Non-rep Pk Forward Current-Max:

  0.6 A

• Number of Elements:

  2

• Number of Terminals:

  3

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Output Current-Max:

  0.2 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Power Dissipation-Max:

  0.15 W

• Qualification Status:

  Not Qualified

• Rep Pk Reverse Voltage-Max:

  30 V

• Reverse Recovery Time-Max:

  0.005 µs

• Surface Mount:

  YES

• Technology:

  SCHOTTKY

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10
