BAT54JW-7 - Diodes Incorporated

Description: DIODE ARRAY SCHOTTKY 30V SOT363

Download BAT54JW-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

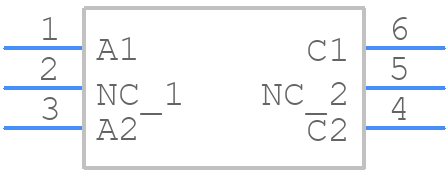

Symbol
BAT54JW-7 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
BAT54JW-7 - Diodes Incorporated PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - BAT54JW-7
click to zoom
3D Models
BAT54JW-7 - Diodes Incorporated - 3D model - SOT23 (6-Pin) - BAT54JW-7
click to zoom

BAT54JW-7 Details

  • Manufacturer Part Number:

    BAT54JW-7

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ULTRA SMALL, PLASTIC PACKAGE-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.70

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Additional Feature:

    FAST SWITCHING

  • Application:

    GENERAL PURPOSE

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e0

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Output Current-Max:

    0.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Dissipation-Max:

    0.2 W

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    30 V

  • Reverse Recovery Time-Max:

    0.005 µs

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

BAT54JW-7 Frequently Asked Questions (FAQs)

  • The BAT54JW-7 can operate from -55°C to 150°C, but the recommended operating temperature range is -40°C to 125°C for optimal performance.
  • The BAT54JW-7 has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent damage. Use an ESD wrist strap or mat, and avoid touching the device's pins or leads.
  • While the BAT54JW-7 is primarily designed for rectification and voltage regulation, it can be used in switching applications with caution. However, its switching speed is limited, and it may not be suitable for high-frequency switching applications.
  • Store the BAT54JW-7 in a dry, cool place with a temperature range of 5°C to 30°C and relative humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
  • Yes, the BAT54JW-7 is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering temperature profile and handling procedures to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BAT54JW-7 Overview

Use the download button to access the BAT54JW-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BAT54, or try a keyword search, such as Rectifier Diodes
