BAW56S,115 - Nexperia

BAW56S,115 Details

• Manufacturer Part Number:

  BAW56S,115

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Pin Count:

  6

• Manufacturer Package Code:

  SOT363

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.70

• Factory Lead Time:

  8 Weeks

• Date Of Intro:

  1997-08-27

• Manufacturer:

  Nexperia

• YTEOL:

  6.1

• Application:

  GENERAL PURPOSE

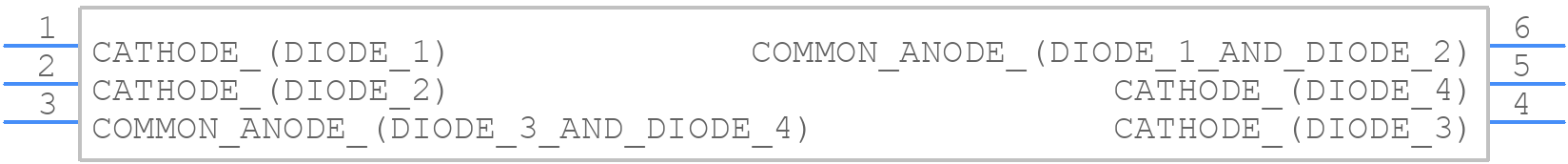

• Configuration:

  2 BANKS, COMMON ANODE, 2 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• JESD-30 Code:

  R-PDSO-G6

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  4

• Number of Terminals:

  6

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -65 °C

• Output Current-Max:

  0.25 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Power Dissipation-Max:

  0.35 W

• Reference Standard:

  IEC-60134

• Rep Pk Reverse Voltage-Max:

  90 V

• Reverse Recovery Time-Max:

  0.004 µs

• Surface Mount:

  YES

• Terminal Finish:

  TIN

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30
