The recommended PCB footprint for BAW56T-7-F is a standard SOT23 footprint with a minimum pad size of 0.8mm x 0.8mm and a thermal pad size of 2.5mm x 2.5mm.
To ensure reliability in high-temperature applications, it is recommended to derate the maximum junction temperature (Tj) by 1°C for every 1W of power dissipation above 25°C. Additionally, ensure good thermal design and heat sinking to keep the junction temperature below 150°C.
Yes, BAW56T-7-F can be used in switching applications, but it is essential to ensure that the switching frequency is within the recommended range (up to 100 kHz) and that the device is properly biased to prevent overheating.
The recommended storage condition for BAW56T-7-F is in a dry, cool place with a temperature range of -40°C to 125°C and relative humidity below 60%.
To handle ESD protection for BAW56T-7-F, it is recommended to use a wrist strap or anti-static mat during handling and assembly, and to ensure that the device is stored in an anti-static bag or tube.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BAW56T-7-F Overview

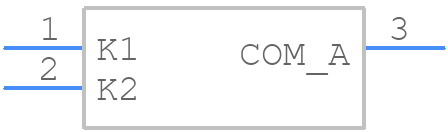

Use the download button to access the BAW56T-7-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BAW56,
or try a keyword search, such as Rectifier Diodes
