BB25AH-HA - NKK Switches

BB25AH-HA Details

• Manufacturer Part Number:

  BB25AH-HA

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  NKK Switches

• Actuator Color:

  BLACK

• Actuator Length:

  0.248 inch

• Actuator Material:

  POLYACETAL

• Actuator Travel:

  1.0922 mm

• Actuator Type:

  PUSHBUTTON

• Body Breadth:

  8.7884 mm

• Body Height:

  23.0124 mm

• Body Length or Diameter:

  8.7884 mm

• Bushing Diameter:

  0.236 inch

• Bushing Length:

  0.106 inch

• Bushing Type:

  UNTHREADED

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  GOLD OVER SILVER

• Contact (DC) Max Power Rating R Load:

  0.4VA@28VDC

• Contact Function:

  ON-(ON)

• Contact Resistance:

  0.05 mΩ

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  BRASS

• End Contact Plating:

  GOLD OVER NICKEL

• Insulation Resistance:

  500000000 Ω

• Insulator Material:

  GLASS FILLED POLYAMIDE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -25 °C

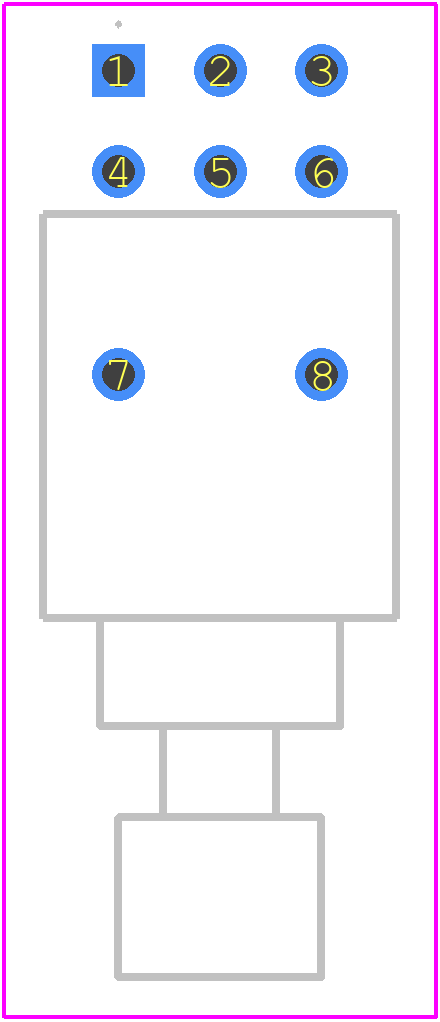

• PCB Hole Count:

  8

• Surface Mount:

  NO

• Switch Action:

  VERTICAL

• Switch Function:

  DPDT

• Terminal Finish:

  GOLD

• Terminal Length:

  0.142 inch

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER

• Washability:

  SOLVENT
