BBL-124-G-E footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

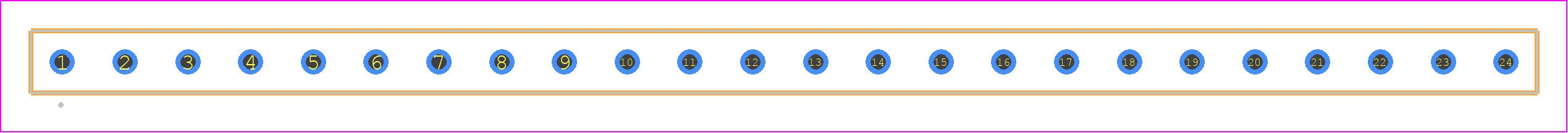

BBL-124-G-E - SAMTEC PCB footprint - Header, Vertical - Header, Vertical - BBL-124-G-E

click to zoom

3D Models

BBL-124-G-E - SAMTEC - 3D model - Header, Vertical - BBL-124-G-E

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BBL-124-G-E
Part Number BBL-124-G-E
Manufacturer SAMTEC
Pin Count 24
Part Category Connector
Package Category Header, Vertical
Footprint Name Header, Vertical - BBL-124-G-E
Released Date May 15, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BBL-124-G-E Details

Manufacturer Part Number:
BBL-124-G-E
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
8
Body Breadth:
0.1 inch
Body Depth:
0.07 inch
Body Length:
2.4 inch
Connector Type:
BOARD STACKING CONNECTOR
Contact Design:
MACHINED
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
BRASS/PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
20u inch
Reference Standard:
UL
Terminal Length:
0.125 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
24

BBL-124-G-E Frequently Asked Questions (FAQs)

The recommended torque for the screws on the BBL-124-G-E connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the BBL-124-G-E connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate in environments with vibrations up to 15 g (147 m/s²) at 10-2000 Hz.
The BBL-124-G-E connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and humidity levels (up to 95% RH). However, it's essential to follow Samtec's guidelines for environmental considerations and ensure proper sealing and protection to maintain reliability.
While the BBL-124-G-E connector is optimized for 1.57 mm PCB thickness, it can be used with PCBs of other thicknesses. However, this may affect the connector's performance and reliability. Consult Samtec's application notes or contact their technical support for guidance on using the connector with non-standard PCB thicknesses.
The BBL-124-G-E connector is rated for a minimum of 500 mating cycles, making it suitable for applications that require frequent connections and disconnections.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

BBL-124-G-E Overview

Use the download button to access the BBL-124-G-E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like BBL-1, or try a keyword search, such as Headers and Edge Type Connectors
