- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for BC66NB-04-STD
- Part Number BC66NB-04-STD
- Manufacturer Quectel
- Pin Count 58
- Part Category Integrated Circuit
- Package Category Other

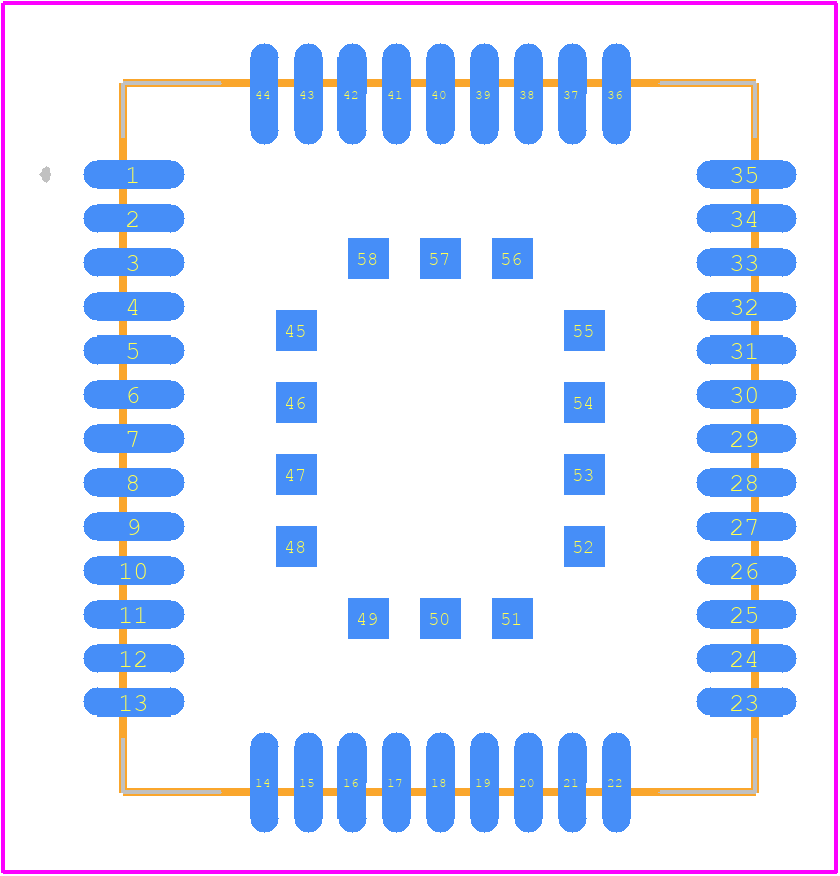

- Footprint Name Other - BC66NB-04-STD-1
- Released Date Nov 6, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BC66NB-04-STD Details
-
Manufacturer Part Number:
BC66NB-04-STD
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
LCC-58
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
26 Weeks
-
Manufacturer:
Quectel Wireless Solutions Co Ltd
-
Additional Feature:
EXTENDED TEMP AVAILABLE WITH -40 TO 85
-
JESD-30 Code:
R-XQMA-N58
-
Length:
17.7 mm
-
Number of Functions:
1
BC66NB-04-STD Frequently Asked Questions (FAQs)
-
The maximum power consumption of the BC66NB-04-STD module is around 2.5W, but it can be optimized to around 1.5W with proper power management.
-
To configure the module for low power consumption, you can use the AT command 'AT+CFUN=0' to disable the module's functionality when not in use, and 'AT+CPWROFF' to power off the module. You can also use the 'AT+CESQ' command to adjust the module's transmission power.
-
The maximum data transfer rate of the BC66NB-04-STD module is up to 588 kbps for upload and 1176 kbps for download.
-
To troubleshoot connectivity issues, check the module's signal strength using the 'AT+CSQ' command, and verify that the module is properly registered on the network using the 'AT+COPS?' command. Also, check the module's firmware version and update it if necessary.
-
The BC66NB-04-STD module is designed to operate in temperatures ranging from -40°C to 85°C. However, it's recommended to operate the module within the temperature range of -20°C to 60°C for optimal performance.
Trust Checks
Expert Contribution
System Verified
Community Approved
BC66NB-04-STD Overview
Use the download button to access the BC66NB-04-STD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BC66N,
or try a keyword search, such as Cellular Telephone Circuits
