- Part Number BC95GJB-02-STD
- Manufacturer Quectel
- Pin Count 94
- Part Category Integrated Circuit
- Package Category Other

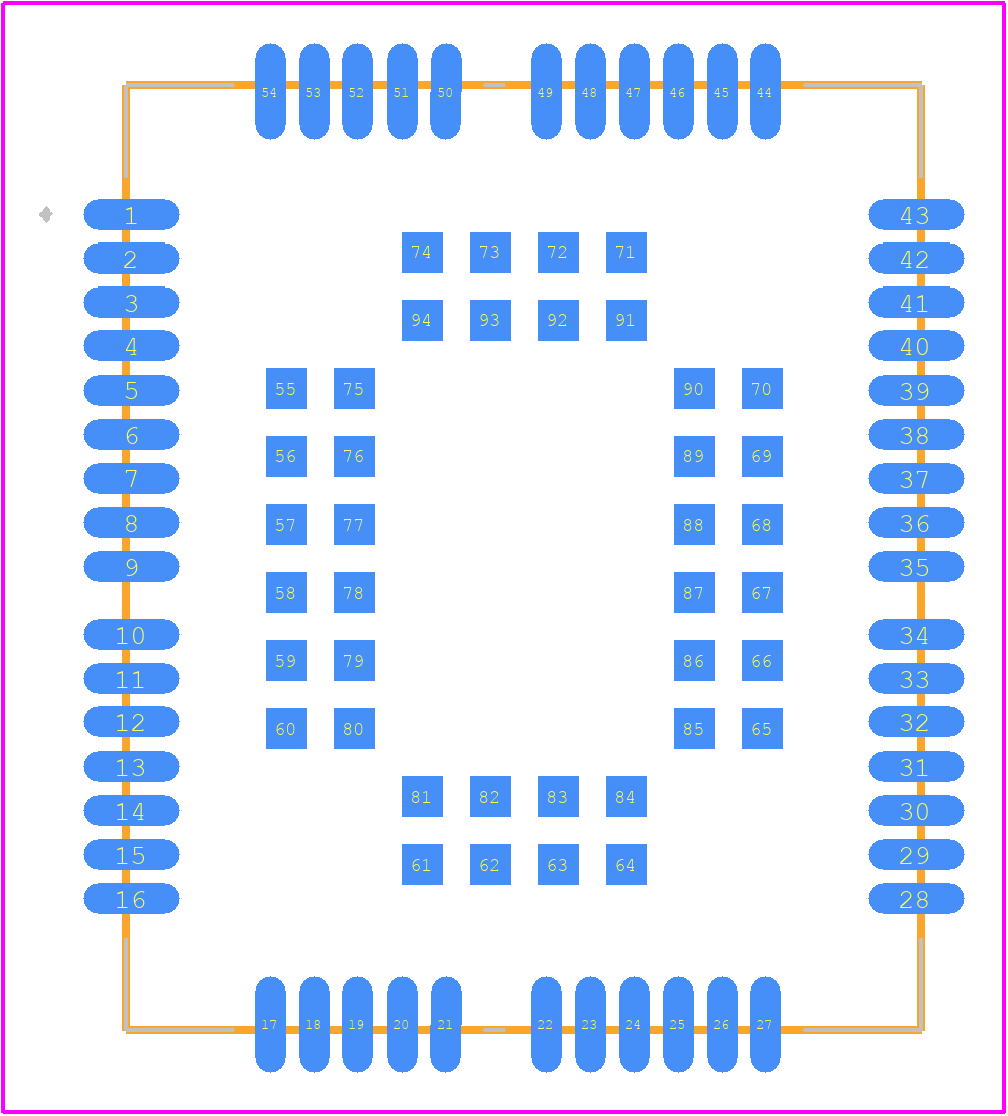

- Footprint Name Other - BC95GJB-02-STD-3
- Released Date Nov 6, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BC95GJB-02-STD Details
-
Manufacturer Part Number:
BC95GJB-02-STD
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
LCC-94
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Quectel Wireless Solutions Co Ltd
-
YTEOL:
0
-
JESD-30 Code:
R-XQMA-N94
-
Length:
23.6 mm
-
Number of Functions:
1
-
Number of Terminals:
94
BC95GJB-02-STD Frequently Asked Questions (FAQs)
-
The maximum power consumption of the BC95GJB-02-STD module is around 2.5W, but it can be optimized to around 1.5W depending on the application and usage scenario.
-
The BC95GJB-02-STD module supports multiple frequency bands, and the configuration can be done through AT commands. The specific commands and settings can be found in the module's AT command manual.
-
The maximum data transfer rate of the BC95GJB-02-STD module is up to 10Mbps for downlink and up to 5Mbps for uplink, depending on the network conditions and configuration.
-
The BC95GJB-02-STD module supports various security protocols, including SSL/TLS, DTLS, and IPSec. The implementation details can be found in the module's security manual and application notes.
-
The operating temperature range of the BC95GJB-02-STD module is -40°C to +85°C, making it suitable for a wide range of industrial and commercial applications.
Trust Checks
Expert Contribution
System Verified
Community Approved
BC95GJB-02-STD Overview
Use the download button to access the BC95GJB-02-STD schematic symbol, PCB footprint, and 3D model.
