BCL-C18LFDG1 footprint, schematic symbol and 3D model by Honda Connectors

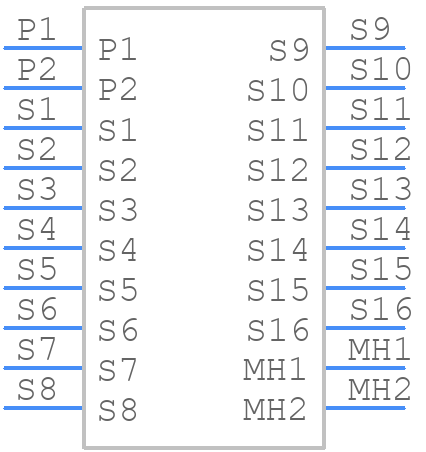

Symbol

click to zoom

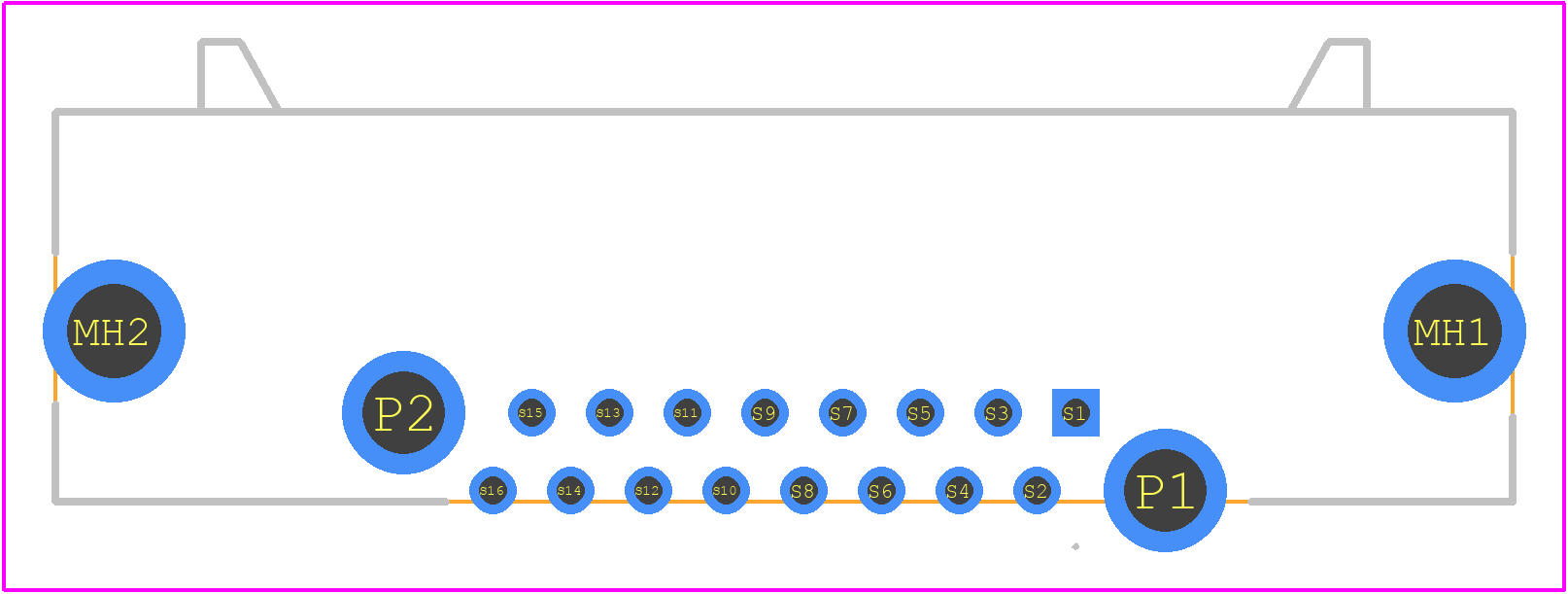

PCB Footprints

BCL-C18LFDG1 - Honda Connectors PCB footprint - Other - Other - BCL-C18LFDG1-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BCL-C18LFDG1
Part Number BCL-C18LFDG1
Manufacturer Honda Connectors
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - BCL-C18LFDG1-1
Released Date Aug 11, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

BCL-C18LFDG1 Details

Manufacturer Part Number:
BCL-C18LFDG1
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Honda Tsushin Kogyo Co Ltd
Connector Type:
TELECOM AND DATACOM CONNECTOR
Contact Finish Mating:
GOLD (8) OVER NICKEL
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
YES
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Material:
POLYBUTYLENE TEREPHTHALATE
Termination Type:
SOLDER
Total Number of Contacts:
18
UL Flammability Code:
94V-0

BCL-C18LFDG1 Frequently Asked Questions (FAQs)

The recommended operating temperature range for the BCL-C18LFDG1 is -20°C to 70°C.
The BCL-C18LFDG1 uses a serial interface, specifically the SPI (Serial Peripheral Interface) protocol, to communicate with the host microcontroller.
The typical power consumption of the BCL-C18LFDG1 is around 20mA at 5V, but this can vary depending on the display mode and brightness setting.
While the BCL-C18LFDG1 is suitable for indoor use, it's not recommended for outdoor use without proper protection from the elements, such as sunlight, moisture, and extreme temperatures.
The brightness of the BCL-C18LFDG1 can be adjusted by sending a specific command to the display module via the SPI interface. The datasheet provides more information on the command format and syntax.

Trust Checks

Community Provided

System Verified

Community Approved

BCL-C18LFDG1 Overview

Use the download button to access the BCL-C18LFDG1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BCL-C, or try a keyword search, such as Telecom and Datacom Connectors
