The recommended PCB layout involves placing the module on a 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A heat sink or thermal interface material can also be used to improve thermal performance.
To ensure reliable start-up and shutdown, it's recommended to follow a soft-start sequence, gradually increasing the input voltage to the module. Additionally, a soft-shutdown sequence can be implemented by gradually decreasing the input voltage to prevent voltage spikes.
Operating the module outside of the recommended input voltage range can lead to reduced efficiency, increased heat generation, and potentially even damage to the module. It's essential to ensure the input voltage remains within the specified range to maintain optimal performance and reliability.
To troubleshoot issues with the module, start by verifying the input voltage and current, as well as the output voltage and current. Check for any signs of overheating, and ensure proper thermal management. If issues persist, consult the datasheet and application notes, or contact Vicor Corporation's technical support for further assistance.
The BCM384T480T325B00 is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. To ensure compliance, follow proper PCB layout and shielding guidelines, and consider using EMI filters or shielding components as needed. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BCM384T480T325B00 Overview

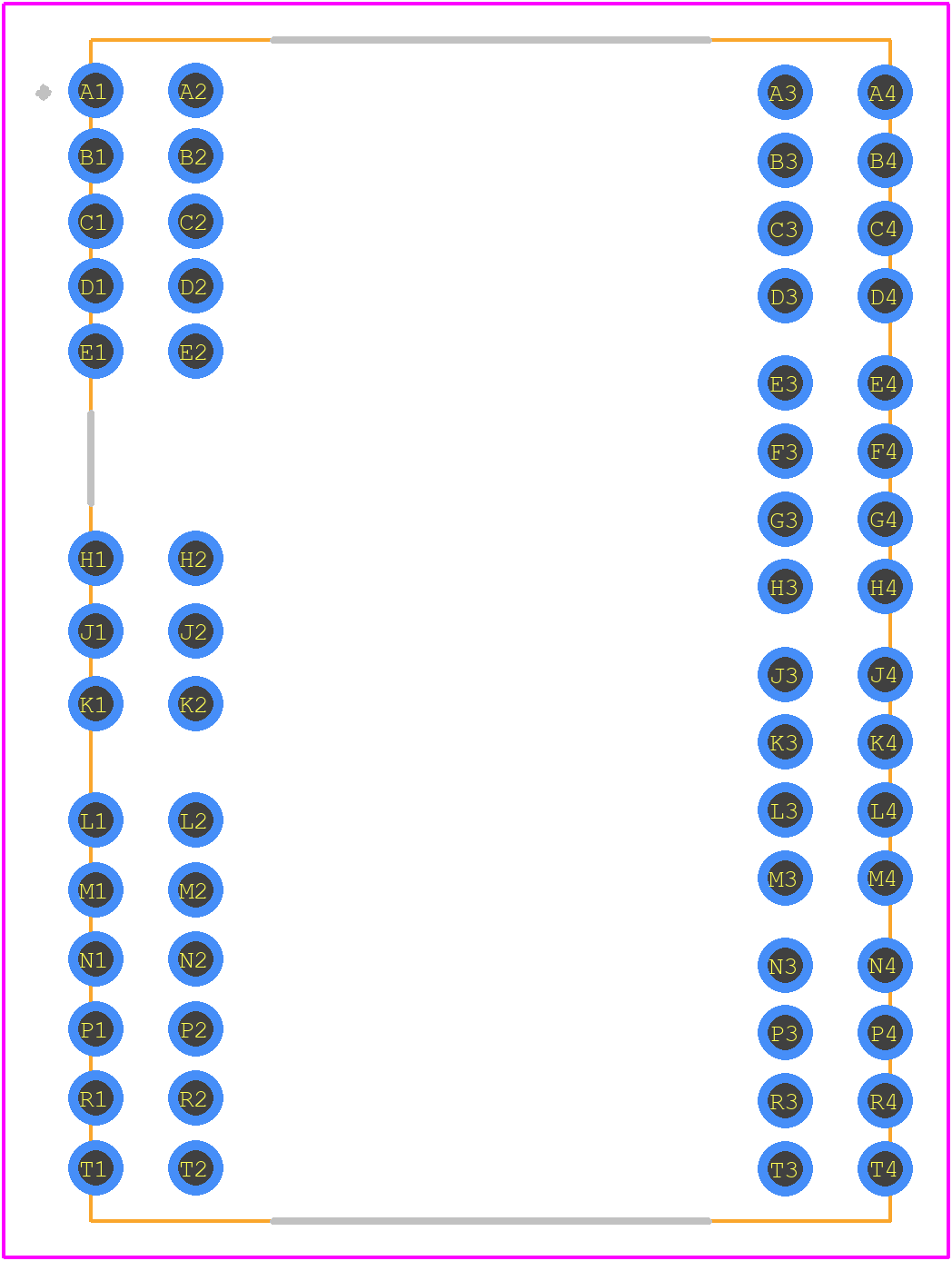

Use the download button to access the BCM384T480T325B00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCM38,
or try a keyword search, such as Power Supply Modules
