BCM400P500T1K8A30 - VICOR

Description: Isolated DC/DC Converters 1, 750 W Isolated DC DC Converter

Download BCM400P500T1K8A30 Model

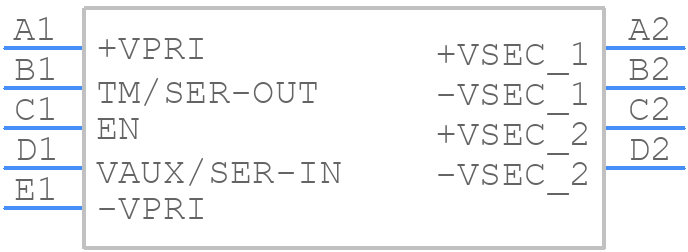

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

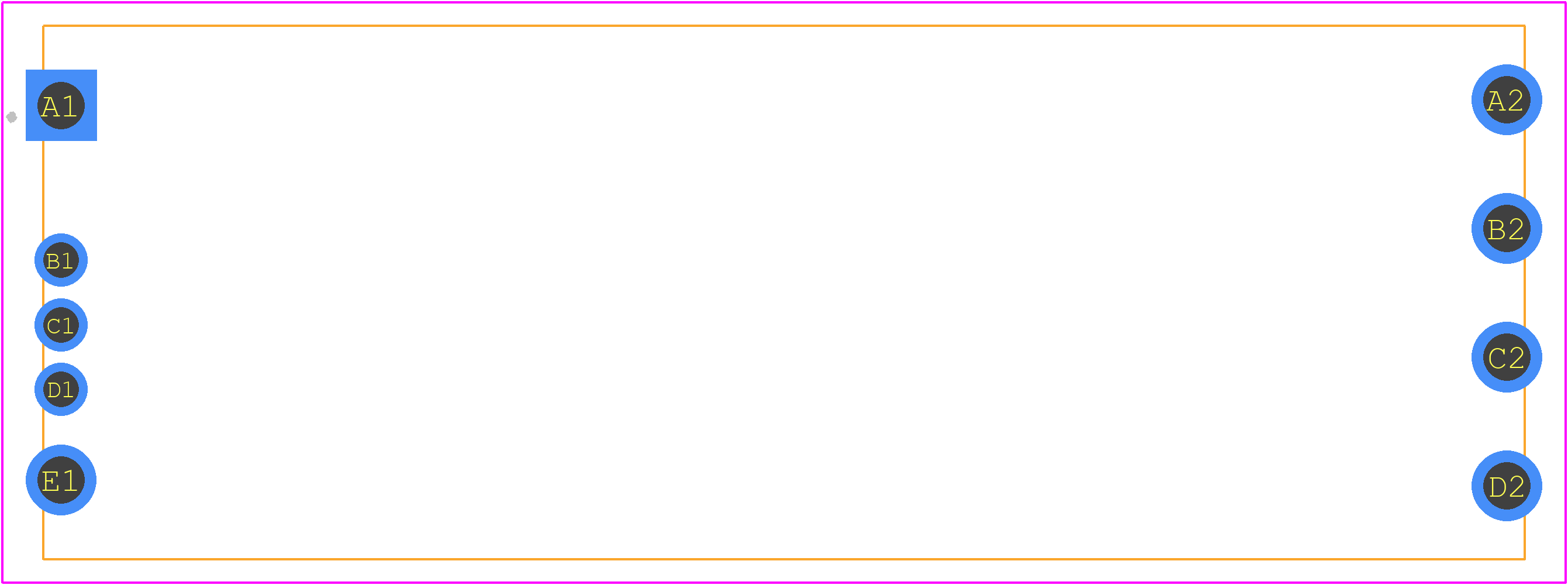

BCM400P500T1K8A30 - VICOR PCB footprint - Other - Other - BCM400P500T1K8A30
click to zoom
3D Models
BCM400P500T1K8A30 - VICOR  - 3D model - Other - BCM400P500T1K8A30
click to zoom

BCM400P500T1K8A30 Details

  • Manufacturer Part Number:

    BCM400P500T1K8A30

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    9.2

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, CTUVUS,CURUS,EN,UL

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    98%

  • Input Voltage-Max:

    410 V

  • Input Voltage-Min:

    260 V

  • Input Voltage-Nom:

    400 V

  • JESD-30 Code:

    R-XDMA-T9

  • Length:

    63.34 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    40 A

  • Output Voltage-Max:

    51.3 V

  • Output Voltage-Min:

    32.5 V

  • Output Voltage-Nom:

    50 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MODULE

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL

  • Seated Height-Max:

    7.76 mm

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    1400 kHz

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1750 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.001 s

  • Width:

    22.8 mm

BCM400P500T1K8A30 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the module on a 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the module's thermal pad to the ground plane.
  • To ensure reliable start-up of the module, it is recommended to use a soft-start circuit to limit the inrush current, and to ensure that the input voltage rises slowly (typically 10-20 ms) to prevent high inrush currents.
  • Operating the module outside of the recommended input voltage range may affect its efficiency, reliability, and stability. It may also cause the module to shut down or enter a fault state to protect itself from damage.
  • To troubleshoot issues with the module's output voltage regulation, check the input voltage, output load, and module temperature. Verify that the module is properly configured and that the output voltage is within the specified range.
  • The thermal derating curves for the module can be found in the datasheet or in Vicor's application notes. These curves provide guidance on the maximum power rating of the module at different ambient temperatures.
