The BCM6123TD0G5030M0P has a thermally enhanced package design with an exposed pad for improved heat dissipation. It's recommended to use a thermal interface material and a heat sink to ensure optimal thermal performance.
To ensure the input voltage stays within the recommended range, use a voltage regulator or a DC-DC converter with a tight output voltage tolerance. Additionally, consider using input voltage monitoring and protection circuits to prevent damage from overvoltage or undervoltage conditions.
For optimal performance, follow Vicor's recommended PCB layout guidelines, which include using a solid ground plane, minimizing trace lengths, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane is also recommended.
To calculate the output voltage ripple, use the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency. Consult the datasheet for recommended output capacitance values and switching frequency ranges.
The maximum ambient temperature for the BCM6123TD0G5030M0P is 85°C, with a derated power output above 60°C. Ensure proper airflow and heat sinking to maintain a safe operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BCM6123TD0G5030M0P Overview

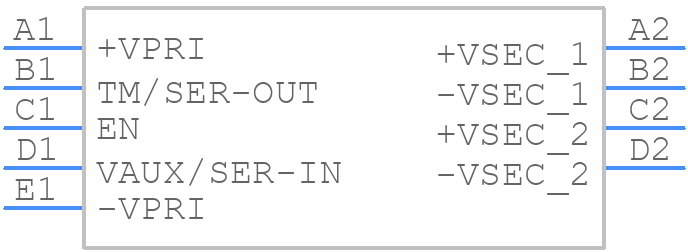

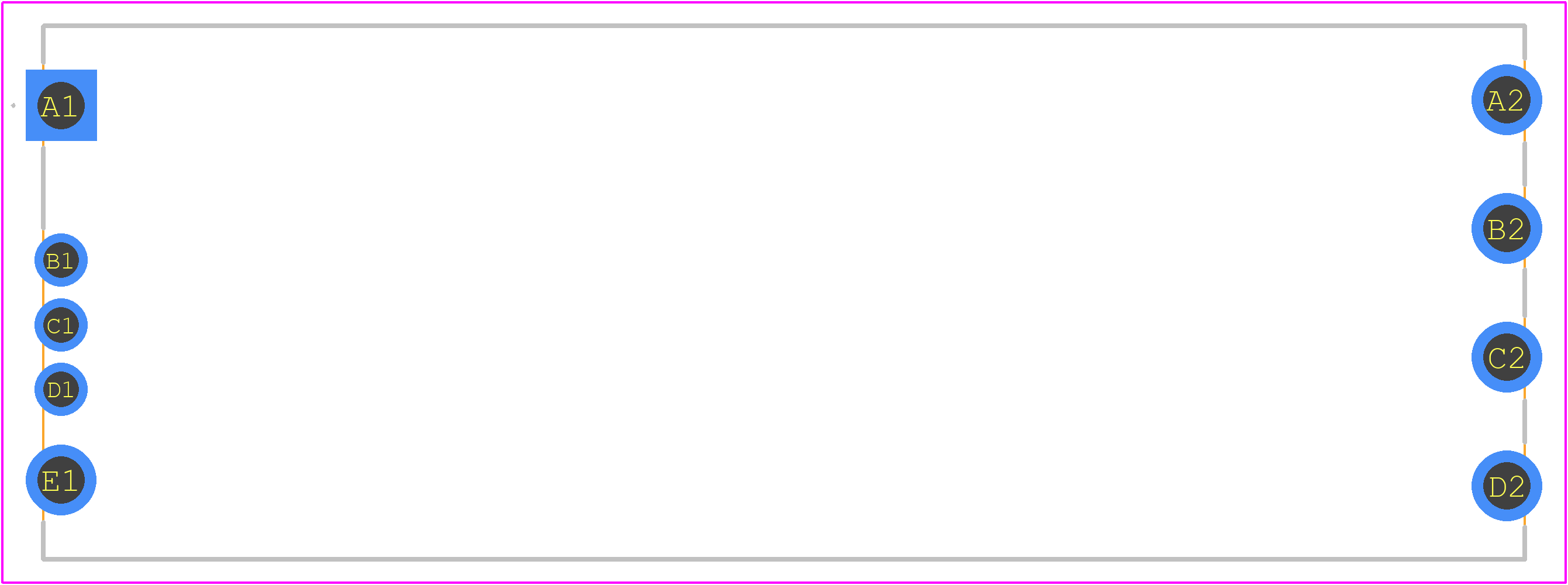

Use the download button to access the BCM6123TD0G5030M0P schematic symbol, PCB footprint, and 3D model.
