The recommended PCB layout for optimal thermal performance involves placing the module on a 4-layer PCB with a solid ground plane on the bottom layer, and using thermal vias to connect the module's thermal pad to the ground plane.
To ensure reliable start-up of the module, make sure to follow the recommended start-up sequence, which involves applying the input voltage before enabling the module, and ensuring that the input voltage is within the specified range.
Operating the module outside of the recommended temperature range can lead to reduced performance, decreased efficiency, and potentially even damage to the module. It is essential to ensure that the module operates within the specified temperature range to ensure optimal performance and reliability.
To troubleshoot issues with the module's output voltage, check the input voltage, output load, and module temperature. Ensure that the input voltage is within the specified range, the output load is within the recommended range, and the module temperature is within the specified range.
The module is designed to meet CISPR 22 Class B emissions standards. To minimize EMI and RFI, ensure that the module is placed in a shielded enclosure, and use proper PCB layout and grounding techniques to minimize radiation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BCM6123TD1E5117T00 Overview

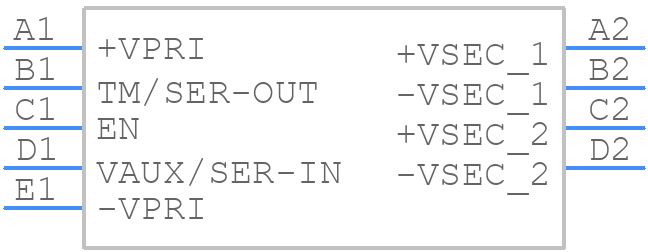

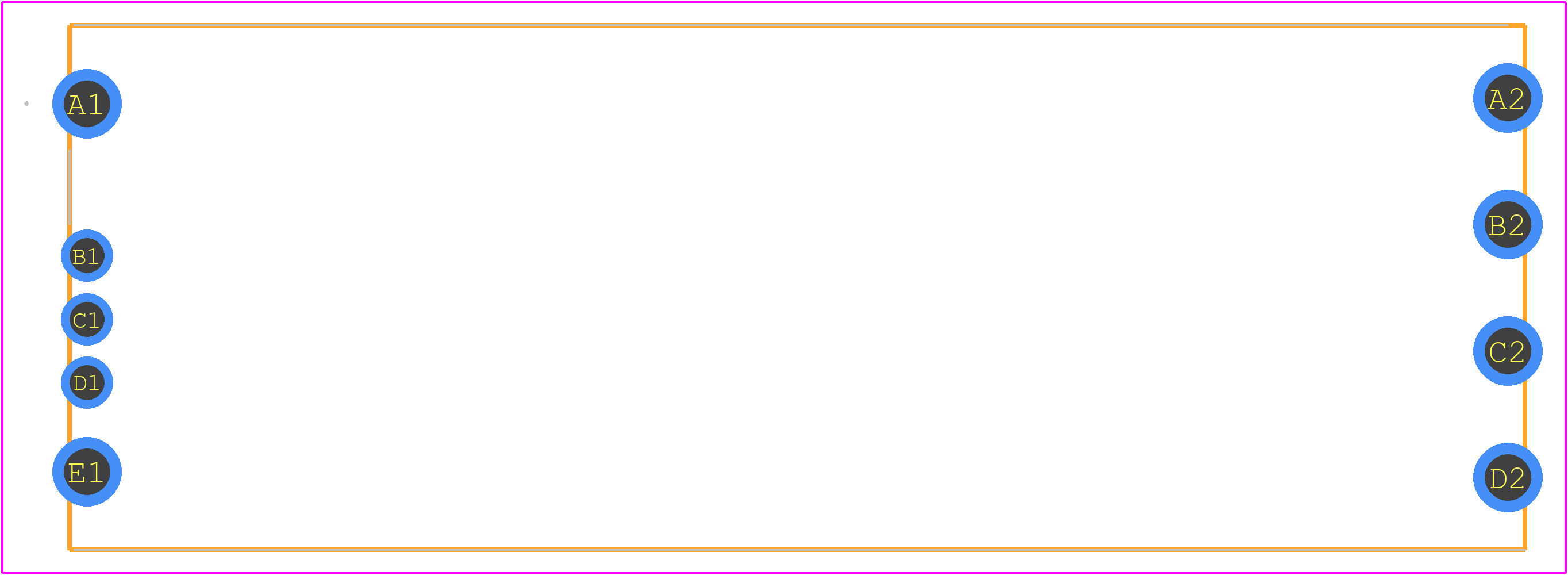

Use the download button to access the BCM6123TD1E5117T00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCM61,
or try a keyword search, such as Power Supply Modules
