BCR5PM-14LD#B00 - Renesas Electronics

Description: Support is limited to customers who have already adopted these products.Renesas triacs, which have a guaranteed junction temperature (Tj) of 150℃ and are provided in a variety of packages, are ideal for white goods and home appliances.

Download BCR5PM-14LD#B00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BCR5PM-14LD#B00 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

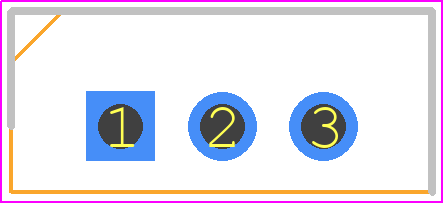

BCR5PM-14LD#B00 - Renesas Electronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - PRSS0003AA-A_a
click to zoom
3D Models
BCR5PM-14LD#B00 - Renesas Electronics - 3D model - Transistor Outline, Vertical - PRSS0003AA-A_a
click to zoom

BCR5PM-14LD#B00 Details

  • Manufacturer Part Number:

    BCR5PM-14LD#B00

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-220F

  • Pin Count:

    3

  • Manufacturer Package Code:

    PRSS0003AA

  • ECCN Code:

    EAR99

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Critical Rate of Rise of Commutation Voltage-Min:

    5 V/us

  • DC Gate Trigger Current-Max:

    50 mA

  • DC Gate Trigger Voltage-Max:

    1.5 V

  • Leakage Current-Max:

    2 mA

  • On-State Voltage-Max:

    1.8 V

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • RMS On-state Current-Max:

    5 A

  • Repetitive Peak Off-state Voltage:

    700 V

  • Surface Mount:

    NO

  • Trigger Device Type:

    TRIAC

BCR5PM-14LD#B00 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BCR5PM-14LD#B00 is -40°C to 125°C.
  • To ensure reliability, follow the recommended derating guidelines for voltage and current, and consider using thermal management techniques such as heat sinks or thermal interfaces.
  • The maximum allowable power dissipation for the BCR5PM-14LD#B00 is 1.5W. Exceeding this limit can lead to device failure.
  • Yes, the BCR5PM-14LD#B00 can be used in switching regulator applications, but ensure that the device is properly biased and that the switching frequency is within the recommended range.
  • Follow proper ESD handling procedures, such as using anti-static wrist straps, mats, and bags, and ensure that the device is properly grounded during handling and assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BCR5PM-14LD#B00 Overview

Use the download button to access the BCR5PM-14LD#B00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCR5P, or try a keyword search, such as TRIACs
