BCR8CM-12LB#BB0 - Renesas Electronics

Description: TRIAC 600V 8A

Download BCR8CM-12LB#BB0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BCR8CM-12LB#BB0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

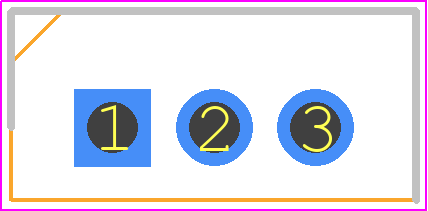

BCR8CM-12LB#BB0 - Renesas Electronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - PRSS0004AG-A
click to zoom
3D Models
BCR8CM-12LB#BB0 - Renesas Electronics - 3D model - Transistor Outline, Vertical - PRSS0004AG-A
click to zoom

BCR8CM-12LB#BB0 Details

  • Manufacturer Part Number:

    BCR8CM-12LB#BB0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-220AB

  • Pin Count:

    4

  • Manufacturer Package Code:

    PRSS0004AG

  • ECCN Code:

    EAR99

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Case Connection:

    MAIN TERMINAL 2

  • Configuration:

    SINGLE

  • Critical Rate of Rise of Commutation Voltage-Min:

    1 V/us

  • DC Gate Trigger Current-Max:

    30 mA

  • DC Gate Trigger Voltage-Max:

    1.5 V

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Leakage Current-Max:

    2 mA

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • On-State Voltage-Max:

    1.5 V

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Packing Method:

    TUBE

  • RMS On-state Current-Max:

    8 A

  • Repetitive Peak Off-state Leakage Current-Max:

    2000 µA

  • Repetitive Peak Off-state Voltage:

    600 V

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Trigger Device Type:

    TRIAC

BCR8CM-12LB#BB0 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in their application note (R01AN3804EJ0100) which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • Renesas recommends following the guidelines in their EMC application note (R01AN3805EJ0100) which provides information on PCB design, component selection, and layout considerations to minimize electromagnetic interference.
  • Although the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device's performance at temperatures above 85°C to ensure reliability and longevity.
  • Yes, the BCR8CM-12LB#BB0 is designed to withstand vibrations up to 10G (rms) in the frequency range of 10Hz to 2kHz, making it suitable for use in high-vibration environments such as automotive or industrial applications.
  • Renesas recommends storing the device in a dry, cool place with a temperature range of -40°C to 30°C and relative humidity below 60% to prevent moisture-related damage.
