BCX51-16,115 - Nexperia

Description: Bipolar Transistors - BJT TRANS MED PWR TAPE-7

Download BCX51-16,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

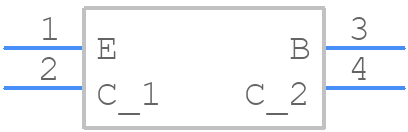

BCX51-16,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
BCX51-16,115 - Nexperia PCB footprint - Other - Other - SOT89_4
click to zoom
3D Models
BCX51-16,115 - Nexperia - 3D model - Other - SOT89_4
click to zoom

BCX51-16,115 Details

  • Manufacturer Part Number:

    BCX51-16,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-89

  • Package Description:

    SOT-89, SC-62, TO-243, 3 PIN

  • Pin Count:

    3

  • Manufacturer Package Code:

    SOT89

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    1997-09-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    1 A

  • Collector-Base Capacitance-Max:

    15 pF

  • Collector-Emitter Voltage-Max:

    45 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    100

  • JEDEC-95 Code:

    TO-243AA

  • JESD-30 Code:

    R-PSSO-F3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    1.35 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    AEC-Q101; IEC-60134

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    145 MHz

  • VCEsat-Max:

    0.5 V

BCX51-16,115 Frequently Asked Questions (FAQs)

  • The SOA is not explicitly stated in the datasheet, but it can be estimated based on the transistor's thermal resistance and maximum junction temperature. As a general guideline, the SOA is typically limited by the maximum current and voltage ratings, which are 1.5 A and 115 V, respectively, for the BCX51-16,115.
  • To ensure stability, it's essential to provide a stable biasing circuit, use a suitable base resistor, and add a bypass capacitor to decouple the base from the collector. Additionally, a small resistor (e.g., 10-100 ohms) in series with the base can help prevent oscillations.
  • Although not explicitly stated in the datasheet, the recommended storage temperature range for the BCX51-16,115 is typically between -40°C and 125°C, which is a common range for most semiconductor devices.
  • Yes, the BCX51-16,115 can be used as a switch, but it's essential to consider the transistor's switching characteristics, such as the turn-on and turn-off times, and the maximum switching frequency. The transistor's saturation voltage and current handling capabilities should also be taken into account.
  • The thermal resistance of the BCX51-16,115 can be calculated using the junction-to-ambient thermal resistance (RθJA) and the junction-to-case thermal resistance (RθJC) values provided in the datasheet. The calculation involves combining these values with the thermal resistance of the PCB and the ambient temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BCX51-16,115 Overview

Use the download button to access the BCX51-16,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCX51, or try a keyword search, such as Power Bipolar Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
