BD-08PMMP-SC7001 - Amphenol

Description: Standard Circular Connector 8P Panel Mount Plug

Download BD-08PMMP-SC7001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BD-08PMMP-SC7001 - Amphenol - PCB symbol
click to zoom
PCB Footprints

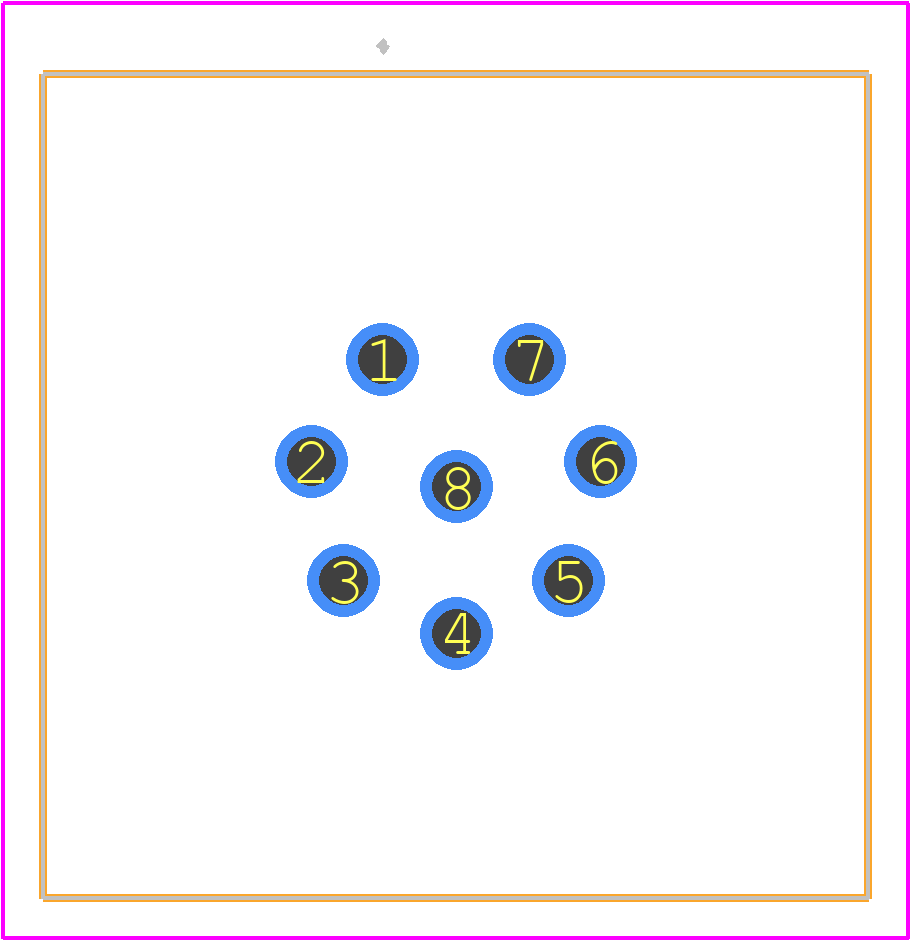

BD-08PMMP-SC7001 - Amphenol PCB footprint - Other - Other - BD-08PMMP-SC7001-1
click to zoom
3D Models
BD-08PMMP-SC7001 - Amphenol - 3D model - Other - BD-08PMMP-SC7001-1
click to zoom

BD-08PMMP-SC7001 Details

  • Manufacturer Part Number:

    BD-08PMMP-SC7001

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7.75

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Gender:

    MALE

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Environmental Characteristics:

    CORROSION RESISTANT

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    WATERPROOF

  • Shell Size:

    B

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

BD-08PMMP-SC7001 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4-12 in-lbs) for mating and unmating the connector. However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure reliable connections.
  • Yes, the BD-08PMMP-SC7001 connector is designed to withstand high-vibration environments. It meets the requirements of MIL-DTL-55302F, which includes vibration testing. However, it's crucial to consult the specific vibration requirements of your application and ensure the connector is properly secured and mated.
  • The BD-08PMMP-SC7001 connector is designed to operate in a wide range of temperatures (-55°C to 125°C) and humidity levels. However, it's essential to consult the specific environmental requirements of your application and ensure the connector is properly sealed and protected to maintain its performance and reliability.
  • The BD-08PMMP-SC7001 connector is rated for a minimum of 500 mating cycles. However, the actual number of mating cycles may vary depending on the application, usage, and environmental conditions. It's recommended to consult the specific requirements of your application and consider the connector's performance and reliability over time.
  • The BD-08PMMP-SC7001 connector is designed to be compatible with other connectors that meet the MIL-DTL-55302F standard. However, it's essential to consult the specific compatibility requirements of your application and ensure that the connectors are properly mated and secured to maintain reliable connections.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD-08PMMP-SC7001 Overview

Use the download button to access the BD-08PMMP-SC7001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD-08, or try a keyword search, such as Other Circular Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
