BD00HA5MEFJ-ME2 - ROHM Semiconductor

Description: LDO Voltage Regulators IC Pwr Linear Reg Single Output LDO

Download BD00HA5MEFJ-ME2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

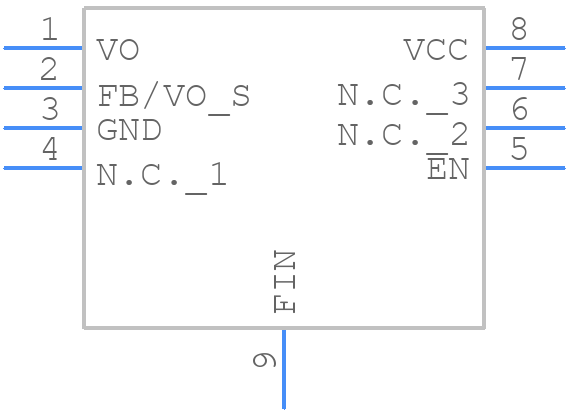

BD00HA5MEFJ-ME2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD00HA5MEFJ-ME2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP-J8-11
click to zoom
3D Models
BD00HA5MEFJ-ME2 - ROHM Semiconductor - 3D model - Small Outline Packages - HTSOP-J8-11
click to zoom

BD00HA5MEFJ-ME2 Details

  • Manufacturer Part Number:

    BD00HA5MEFJ-ME2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    HTSOP-8

  • Direct Group:

    VG0083521TT9

  • Similar Group:

    VG001001109910051427

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    1.2 V

  • Dropout Voltage1-Nom:

    0.6 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    1.116

  • Load Regulation-Max:

    5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    7 V

  • Output Voltage1-Min:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSOP

  • Package Equivalence Code:

    TSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Packing Method:

    TR, EMBOSSED

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

BD00HA5MEFJ-ME2 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad size of at least 2.5mm x 2.5mm with multiple vias to the ground plane to ensure efficient heat dissipation. A minimum of 3mm clearance around the device is also recommended to prevent thermal interference.
  • To ensure stable operation with a high-ESR output capacitor, ROHM recommends adding a 1nF to 10nF ceramic capacitor in parallel with the output capacitor to reduce the overall ESR. Additionally, the output capacitor should be placed as close to the device as possible.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may cause damage to the device. It's recommended to use a voltage divider or a clamp circuit to ensure the EN pin voltage remains within the specified range.
  • While the BD00HA5MEFJ-ME2 is rated for operation up to 125°C, ROHM recommends derating the output current and voltage to ensure reliable operation in high-temperature environments. Consult the datasheet and ROHM's application notes for specific guidance.
  • To troubleshoot oscillations or instability issues, check the PCB layout for proper grounding, decoupling, and routing. Ensure that the input and output capacitors are properly selected and placed. Also, verify that the device is operated within the specified voltage and current ranges. If issues persist, consult ROHM's application notes and technical support resources.
