BD00HC5MEFJ-ME2 - ROHM Semiconductor

Description: ROHM - BD00HC5MEFJ-ME2 - LDO Voltage Regulator, Adjustable, 4.5V to 8V input, 600 mV drop., 1.5V to 7V/1.5A out, HTSOP-8

Download BD00HC5MEFJ-ME2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

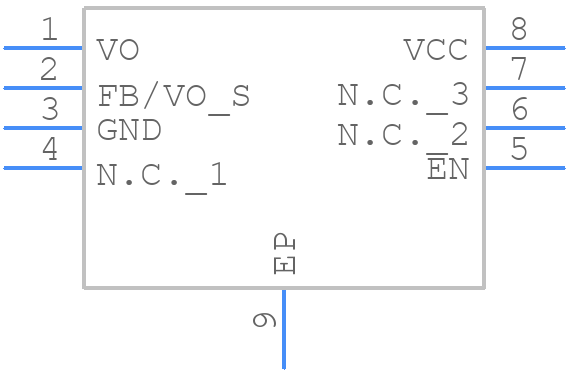

BD00HC5MEFJ-ME2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD00HC5MEFJ-ME2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP-J8 HEIGHT 1
click to zoom
3D Models
BD00HC5MEFJ-ME2 - ROHM Semiconductor - 3D model - Small Outline Packages - HTSOP-J8 HEIGHT 1
click to zoom

BD00HC5MEFJ-ME2 Details

  • Manufacturer Part Number:

    BD00HC5MEFJ-ME2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    HTSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    1.2 V

  • Dropout Voltage1-Nom:

    0.6 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    1.785

  • Load Regulation-Max(%):

    5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    7 V

  • Output Voltage1-Min:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSOP

  • Package Equivalence Code:

    TSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

BD00HC5MEFJ-ME2 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad size of at least 2.5mm x 2.5mm with multiple vias to the ground plane to ensure efficient heat dissipation. A minimum of 3mm clearance around the device is also recommended to prevent thermal interference.
  • To ensure stable operation, ROHM recommends a soft-start circuit to limit the inrush current during power-up. Additionally, a power-down sequence with a gradual voltage reduction can help prevent voltage spikes and ensure a safe shutdown.
  • ROHM recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. X5R or X7R ceramic capacitors are suitable for this application. The capacitor selection should be based on the specific application requirements and operating conditions.
  • ROHM recommends using overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device. A voltage supervisor IC can be used to monitor the input voltage and provide a reset signal to the device in case of an overvoltage or undervoltage condition.
  • The recommended operating temperature range for the BD00HC5MEFJ-ME2 is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure the device is operated within the recommended temperature range to maintain its performance and reliability.
