BD00IA5MEFJ-ME2 - ROHM Semiconductor

BD00IA5MEFJ-ME2 Details

• Manufacturer Part Number:

  BD00IA5MEFJ-ME2

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

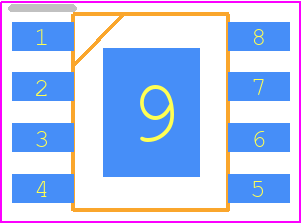

• Package Description:

  HTSOP-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  3

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.9 V

• Dropout Voltage1-Nom:

  0.4 V

• JESD-30 Code:

  R-PDSO-G8

• Length:

  4.9 mm

• Line Regulation-Max (%/V):

  1.31

• Load Regulation-Max:

  9.375%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.5 A

• Output Voltage1-Max:

  4.5 V

• Output Voltage1-Min:

  0.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSOP

• Package Equivalence Code:

  TSOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Qualification Status:

  Not Qualified

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  3.9 mm
