BD00IC0MEFJ-LBH2 - ROHM Semiconductor

Description: LDO Voltage Regulators 1.0A 5.5-2.5 Vin LDO Industrial HTSOP-J8

Download BD00IC0MEFJ-LBH2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

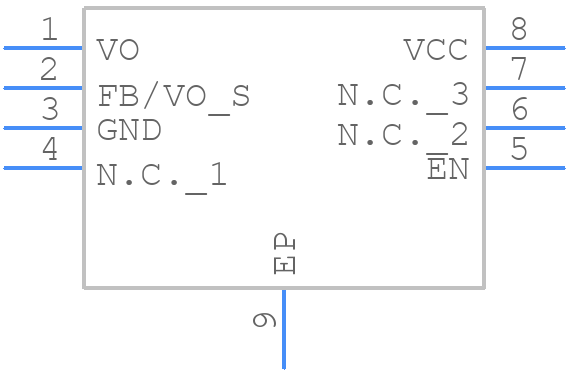

BD00IC0MEFJ-LBH2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

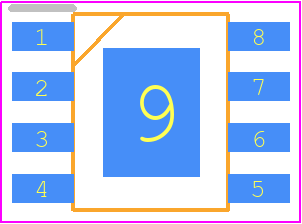

BD00IC0MEFJ-LBH2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP-J8-4
click to zoom
3D Models
BD00IC0MEFJ-LBH2 - ROHM Semiconductor - 3D model - Small Outline Packages - HTSOP-J8-4
click to zoom

BD00IC0MEFJ-LBH2 Details

  • Manufacturer Part Number:

    BD00IC0MEFJ-LBH2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.9 V

  • Dropout Voltage1-Nom:

    0.4 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.2127

  • Load Regulation-Max:

    1.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    4.5 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSOP

  • Package Equivalence Code:

    TSOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, EMBOSSED

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

BD00IC0MEFJ-LBH2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BD00IC0MEFJ-LBH2 is -40°C to 125°C.
  • To ensure reliability, follow the recommended derating guidelines for the device, and consider using thermal management techniques such as heat sinks or thermal interfaces.
  • The maximum allowed power dissipation for the BD00IC0MEFJ-LBH2 is 1.5W. Exceeding this limit can lead to device failure or reduced lifespan.
  • Yes, the BD00IC0MEFJ-LBH2 is suitable for switching regulator applications due to its low voltage drop and high current capability. However, ensure that the device is properly biased and the switching frequency is within the recommended range.
  • To prevent ESD damage, handle the BD00IC0MEFJ-LBH2 with anti-static wrist straps, mats, or other ESD protection devices. Ensure that the device is stored in anti-static packaging and follow proper assembly procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD00IC0MEFJ-LBH2 Overview

Use the download button to access the BD00IC0MEFJ-LBH2 schematic symbol, PCB footprint, and 3D model.
