BD0205F5050AHF - ANAREN

Description: Signal Conditioning 200-500MHz 50 Ohm IL +1.1dB

Download BD0205F5050AHF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

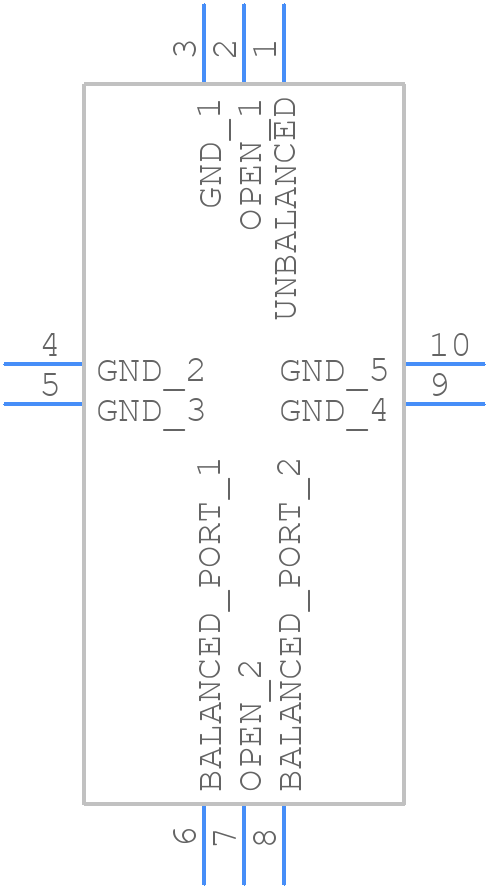

BD0205F5050AHF - ANAREN - PCB symbol
click to zoom
PCB Footprints
BD0205F5050AHF - ANAREN PCB footprint - Other - Other - BD0205F5050AHF-6
click to zoom
3D Models
BD0205F5050AHF - ANAREN - 3D model - Other - BD0205F5050AHF-6
click to zoom

BD0205F5050AHF Details

  • Manufacturer Part Number:

    BD0205F5050AHF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Anaren Microwave

  • Cut-off Frequency-Max:

    1000 MHz

  • Cut-off Frequency-Min:

    70 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    3.4 dB

  • Length:

    4.1 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TAPE & REEL

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    2.1 mm

BD0205F5050AHF Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Anaren Microwave application note AN-112, which provides guidelines for optimal performance and thermal management.
  • Proper thermal management can be achieved by providing a thermal path from the device to a heat sink or a metal core PCB, and ensuring good airflow around the device. The thermal resistance of the device is specified in the datasheet.
  • The maximum power handling capability of the BD0205F5050AHF is 50W, but it's recommended to derate the power handling to ensure reliable operation and to prevent overheating.
  • Yes, the BD0205F5050AHF can be used in a push-pull configuration, but it's recommended to consult with Anaren Microwave's application engineers to ensure proper design and implementation.
  • The recommended soldering profile for the BD0205F5050AHF is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD0205F5050AHF Overview

Use the download button to access the BD0205F5050AHF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD020, or try a keyword search, such as RF Transformers
