BD0826J50200AHF - ANAREN

Description: RF Balun 800MHz ~ 2.6GHz 50 / 200Ohm 0805 (2012 Metric)

Download BD0826J50200AHF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

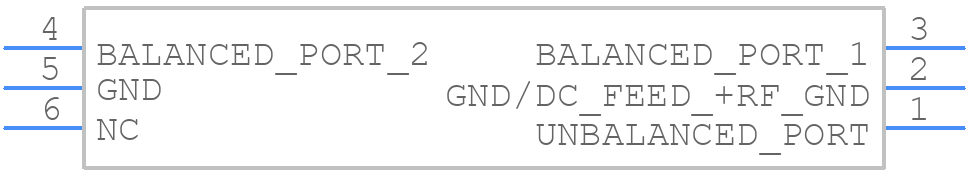

BD0826J50200AHF - ANAREN - PCB symbol
click to zoom
PCB Footprints
BD0826J50200AHF - ANAREN PCB footprint - Other - Other - 0805 (2012 Metric)
click to zoom
3D Models
BD0826J50200AHF - ANAREN - 3D model - Other - 0805 (2012 Metric)
click to zoom

BD0826J50200AHF Details

  • Manufacturer Part Number:

    BD0826J50200AHF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Anaren Microwave

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    2600 MHz

  • Cut-off Frequency-Min:

    800 MHz

  • Height:

    0.68 mm

  • Insertion Loss:

    1.5 dB

  • JESD-609 Code:

    e4

  • Length:

    2.04 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Max:

    2600000 kHz

  • Operating Frequency-Min:

    800000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TAPE & REEL

  • Power Rating:

    2 W

  • Primary Impedance:

    200 OHMS

  • Secondary Impedance:

    50 OHMS

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.29 mm

BD0826J50200AHF Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Anaren Microwave application note AN-1121, which provides guidelines for optimal performance and thermal management.
  • The device has a thermal pad on the bottom, which should be connected to a thermal ground plane on the PCB. A thermal interface material (TIM) can be used to improve heat transfer. Ensure good airflow and consider using a heat sink if necessary.
  • The maximum power handling capability is not explicitly stated in the datasheet, but it's recommended to derate the power handling based on the operating frequency, temperature, and other environmental factors. Consult with Anaren Microwave's application engineers for specific guidance.
  • While the BD0826J50200AHF is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may affect the device's performance and reliability. Consult with Anaren Microwave's application engineers for guidance on impedance matching and potential performance impacts.
  • The recommended soldering process involves using a reflow soldering process with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. Ensure that the PCB is designed for reflow soldering and follow the recommended soldering profile.
