BD10 - LITTELFUSE

Description: Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 100mA 5VDC

Download BD10 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this BD10 model

Email notifications will be applied after download.

Send part feedback

Symbol

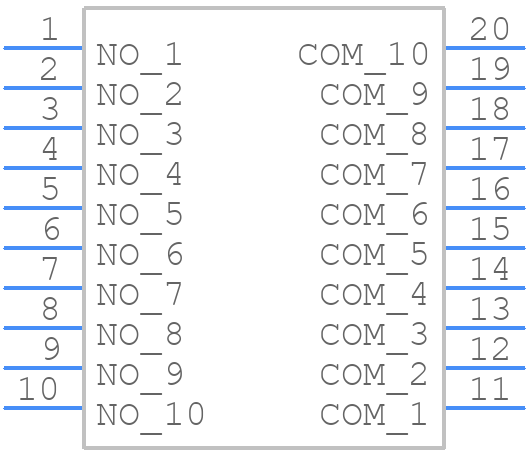

BD10 - LITTELFUSE - PCB symbol

PCB Footprints

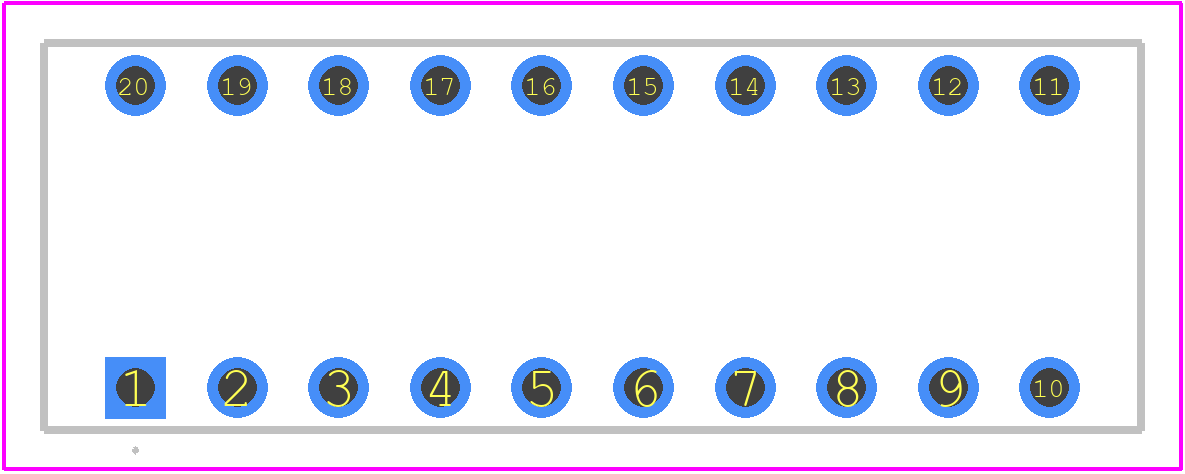

BD10 - LITTELFUSE PCB footprint - Other - Other - BD10-2

3D Models

BD10 - LITTELFUSE - 3D model - Other - BD10-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for BD10
Part Number BD10
Manufacturer LITTELFUSE
Pin Count 20
Part Category Switch
Package Category Other
Footprint Name Other - BD10-2
Released Date Apr 27, 2018
Last Modified Date Apr 10, 2026 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

BD10 Details

Manufacturer Part Number:
BD10
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Littelfuse Inc
Switch Type:
SLIDE DIP SWITCH
