BD1222J50200AHF footprint, schematic symbol and 3D model by ANAREN

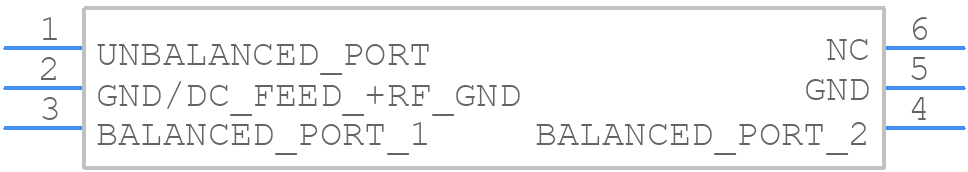

Symbol

PCB Footprints

3D Models

BD1222J50200AHF Details

The recommended PCB layout and land pattern can be found in the Anaren Microwave application note AN-1121, which provides guidelines for optimal performance and thermal management.
Proper thermal management can be achieved by using a thermal pad or heat sink, and ensuring good airflow around the component. The thermal resistance of the component is 25°C/W, and the maximum junction temperature is 150°C.
The recommended soldering process is a reflow soldering process with a peak temperature of 260°C for 10-30 seconds. The component is RoHS compliant and can withstand multiple reflow cycles.
Troubleshooting and debugging can be done using standard RF test equipment such as a vector network analyzer and a signal generator. Anaren Microwave also provides application notes and technical support to help with design and troubleshooting.
The typical lead time for the BD1222J50200AHF is 8-12 weeks, and availability can be checked with Anaren Microwave's sales team or authorized distributors.
